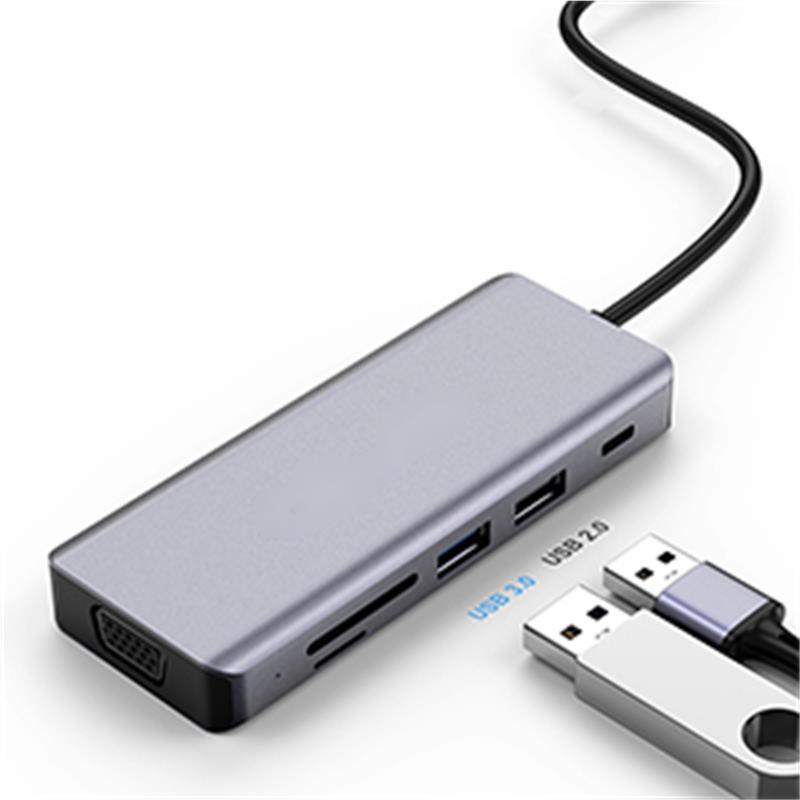

Hub Multiple USB OEM 9in1 Type C Hub Dual HDM I 4K30HZ VGA 1080P PD100W Compatible with MacBoo k Pro Del l Lenov o H P Del l

UH09-2-A-0.12-SY

minimum order

1 piece

Country of Origin

Shenzhen

Quantity

$16.50 - $18.00 / piece

Contact Now

Products Status:Stock
Ports:9
Interface Type:USB 3.1
Brand Name:Customized
Model Number:UH09-2-A-0.12-SY
Place of Origin:Guangdong, China
Input:USB 3.1 / Type C Male
Interface:HDM I*2+USB3.0+USB2.0+USB C PD100W*1+SD/TF2.0*1+VGA*1+3.5mm Audio*1
Material:Aluminum Alloy Shell
Chipset:LT8712EXI MA8621
HDM I Resolution:4K@30Hz
VGA Resolution:1920*1080P@60Hz
MOQ:100 Pcs
Warranty:12 Months / 1 Year
Package:Customized Color Box as Required
Compatible with:Type C device that support DP Alt

Recommend Products

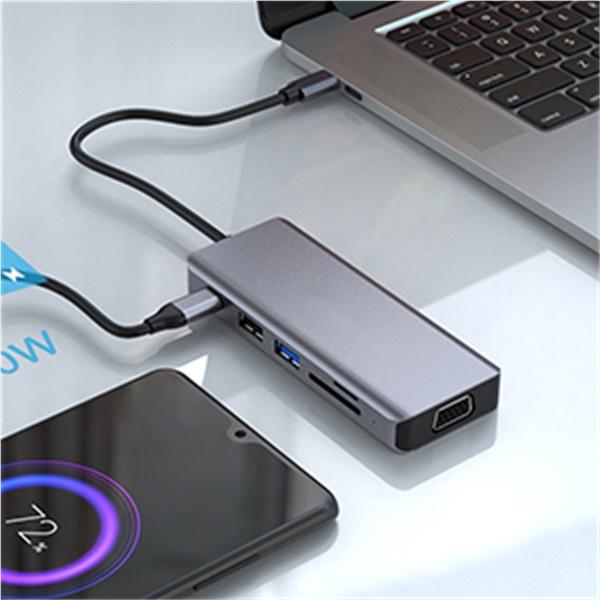

Hub Multiple USB 9 in 1 Type C Hub with Dual HDMI 4K30HZ VGA 1080P PD 100W

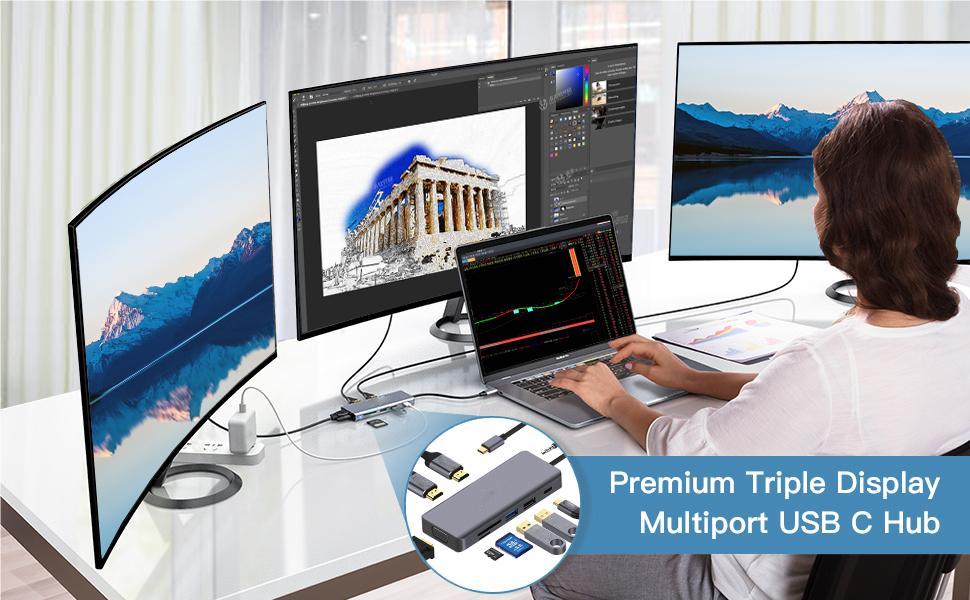

**Support Single/ Dual / Triple Display
√HDMI1: 4k@30Hz MAX
√HDMI2: 4k@30Hz MAX
√VGA:1080P@60(1920*1080)

**Dual display:
HDMI1+HDMI2: 4k@30Hz MAX
HDMI 1/2+VGA: 1920*1080P@60Hz MAX

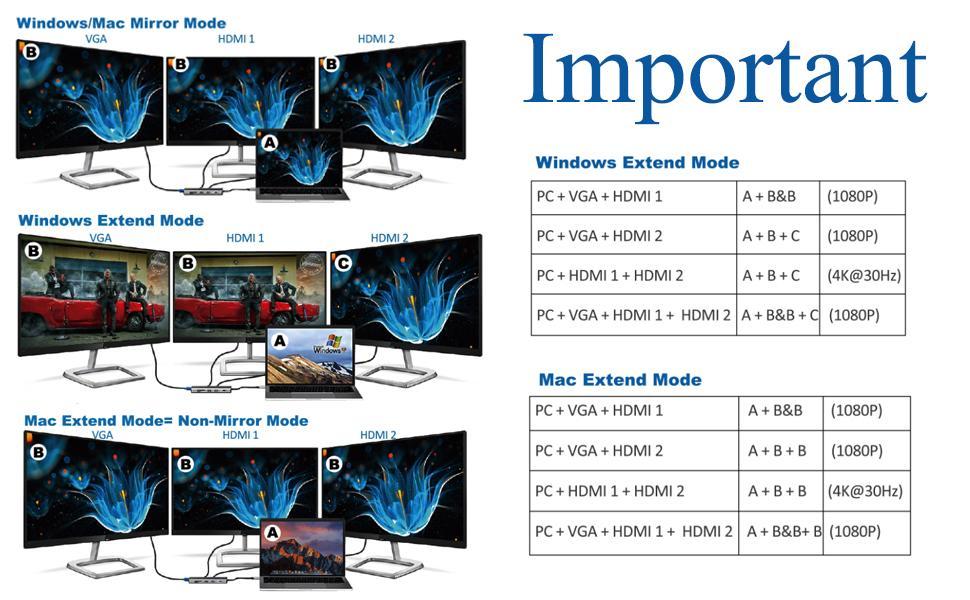

**Triple Display:
*Mirror Mode: Windos/MAC OS: A(Laptop)BBB 1920*1080P@60Hz MAX

*Extend mode

Windos:A(Laptop)BCB 1920*1080P@60Hz MAX

MAC OS: A(Laptop)BBB 1920*1080P@60Hz MAX

** 9 ports can be used simultaneously

** Compatible Operating Systems(partial list)
Windows 7/ 8 /10 above,Mac 10.0 above,Android, Ubuntu,Chrome os

Kind noted:

1. USB C port from your host is must support Alt mode.
2. SD card and TF card can’t be read simultaneously,
3. To prevent data loss or damage, avoid disconnecting the PD adapter from AC power while transferring data.
4. The current output USB 3.0 ports not recommended to charge iPads, tablets, or smartphones.

Features

USB C Upstream Male Port	1 * USB 3.1 C port with 0.25 meter cable
HDMI Port * 2	Up to 4K@30Hz max
VGA Port * 1	Up to 1920*1080P
USB 3.0 * 1	USB 3.0 High speed up to 5Gbps
USB 2.0 * 1	USB 2.0 High speed up to 480Mbps
SD/TF Slot * 2	Support SD & TF 2 cards
Audio Jack * 1	3.5mm microphone & earphone
USB C PD * 1	Support 100W PD Charging

More Informations

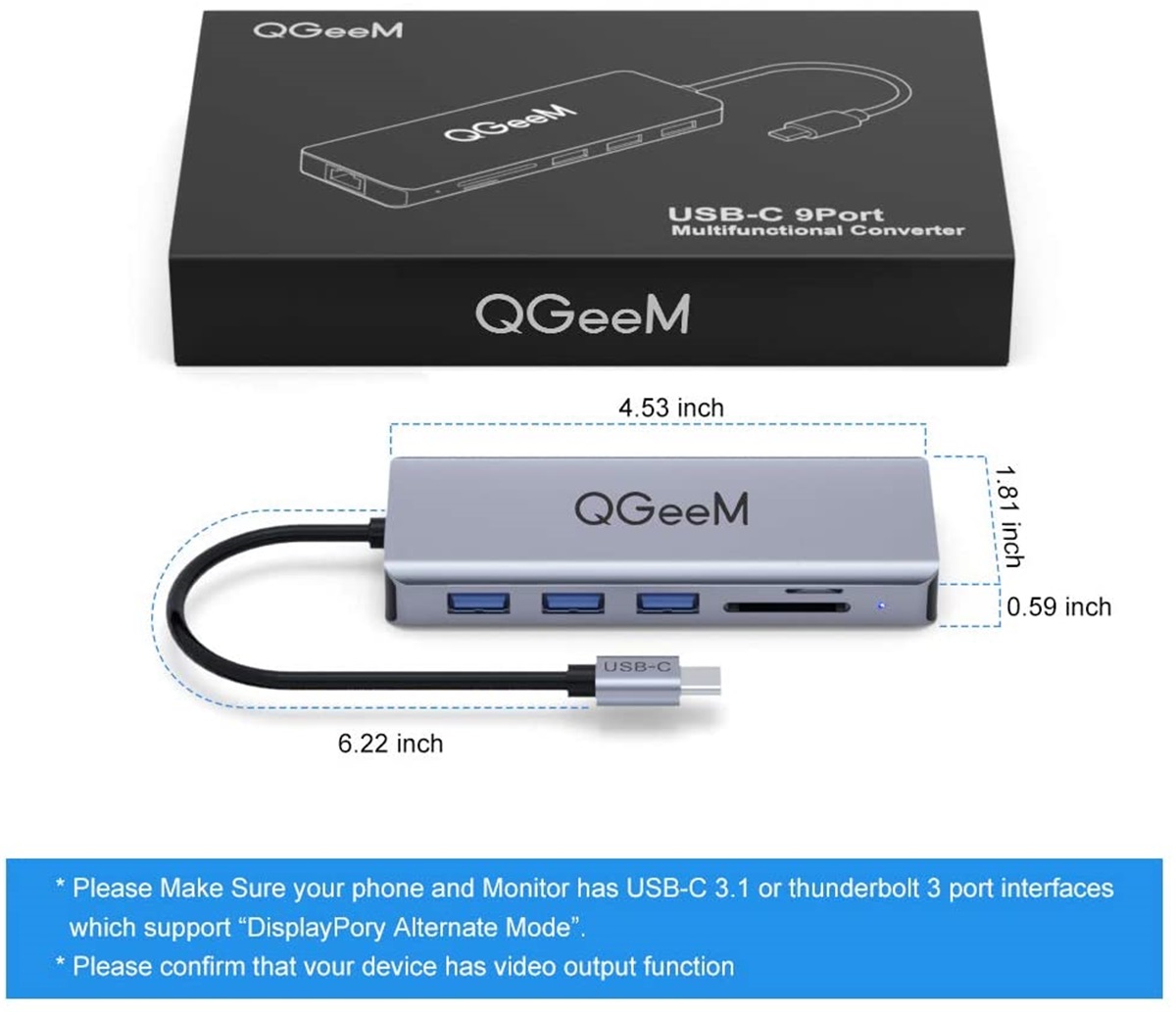

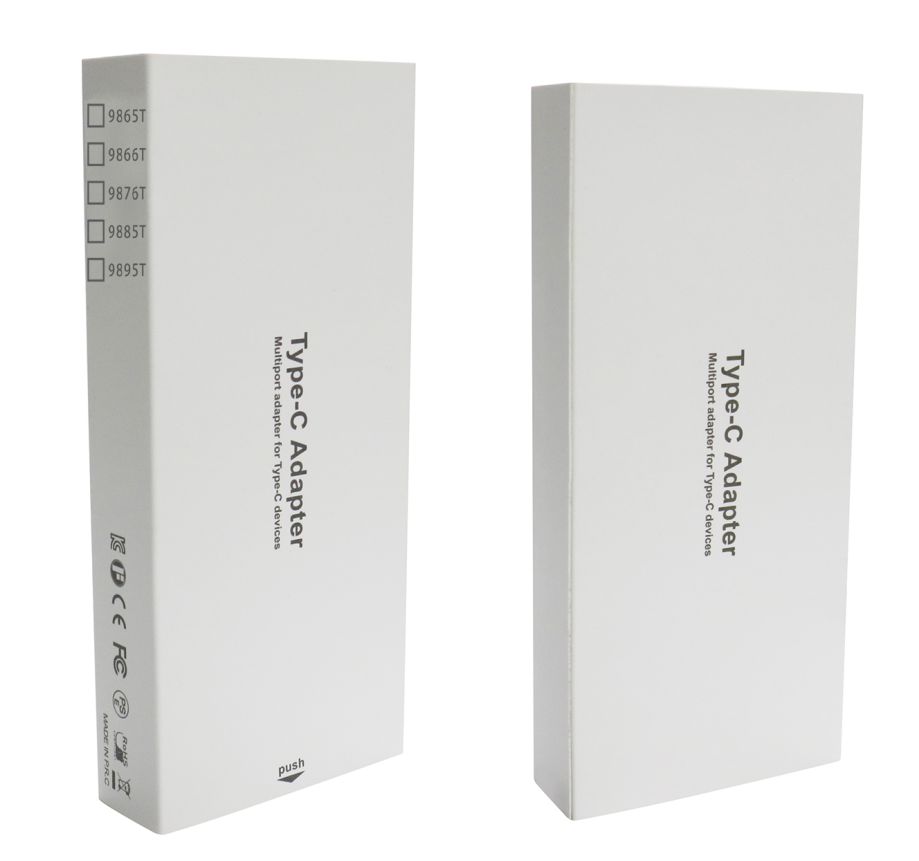

Package Image

Questions?	Answers!
According to different system, how to adjust the resolution?	Windows: Hold down the “option” key--click “Scaled” Mac OS:"Mac Setting"-"System"-"Display"
Is it compatible with all USB C interfaces?	Your device's C-port needs to support DP Alt Mode or Thunderbolt 3

Payment

Delivery

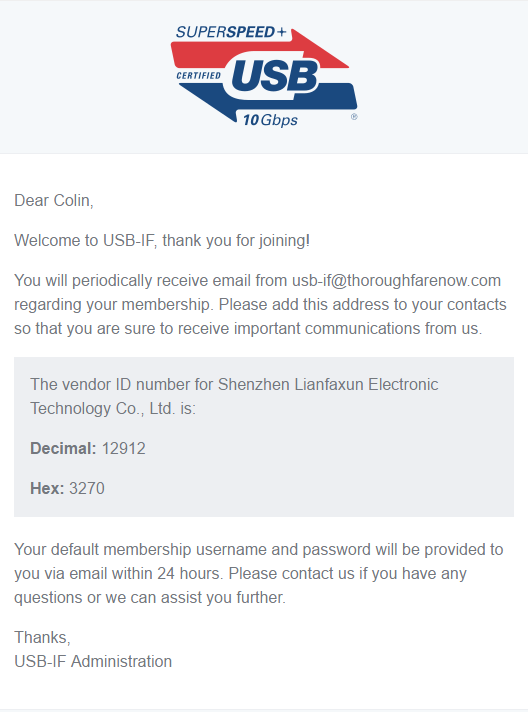

Certifications

Exhibitions

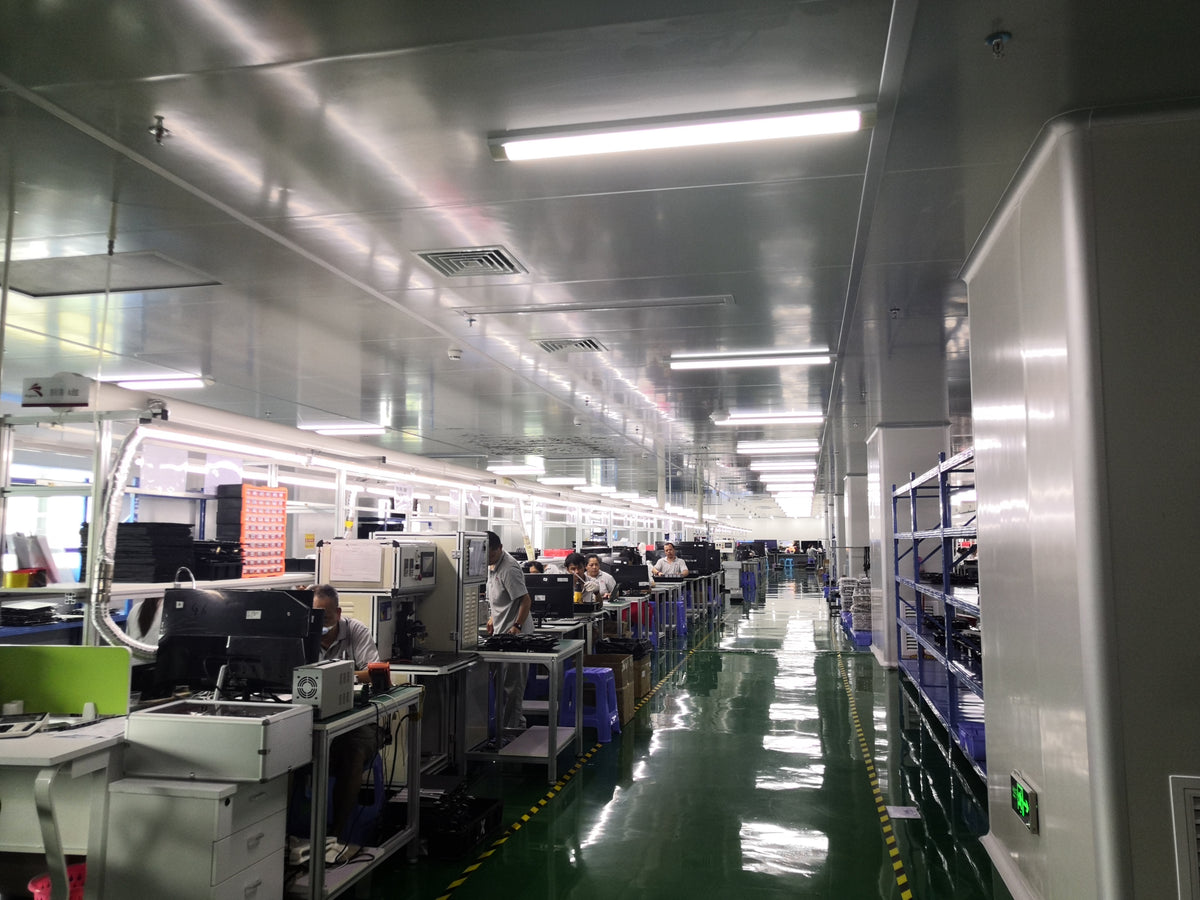

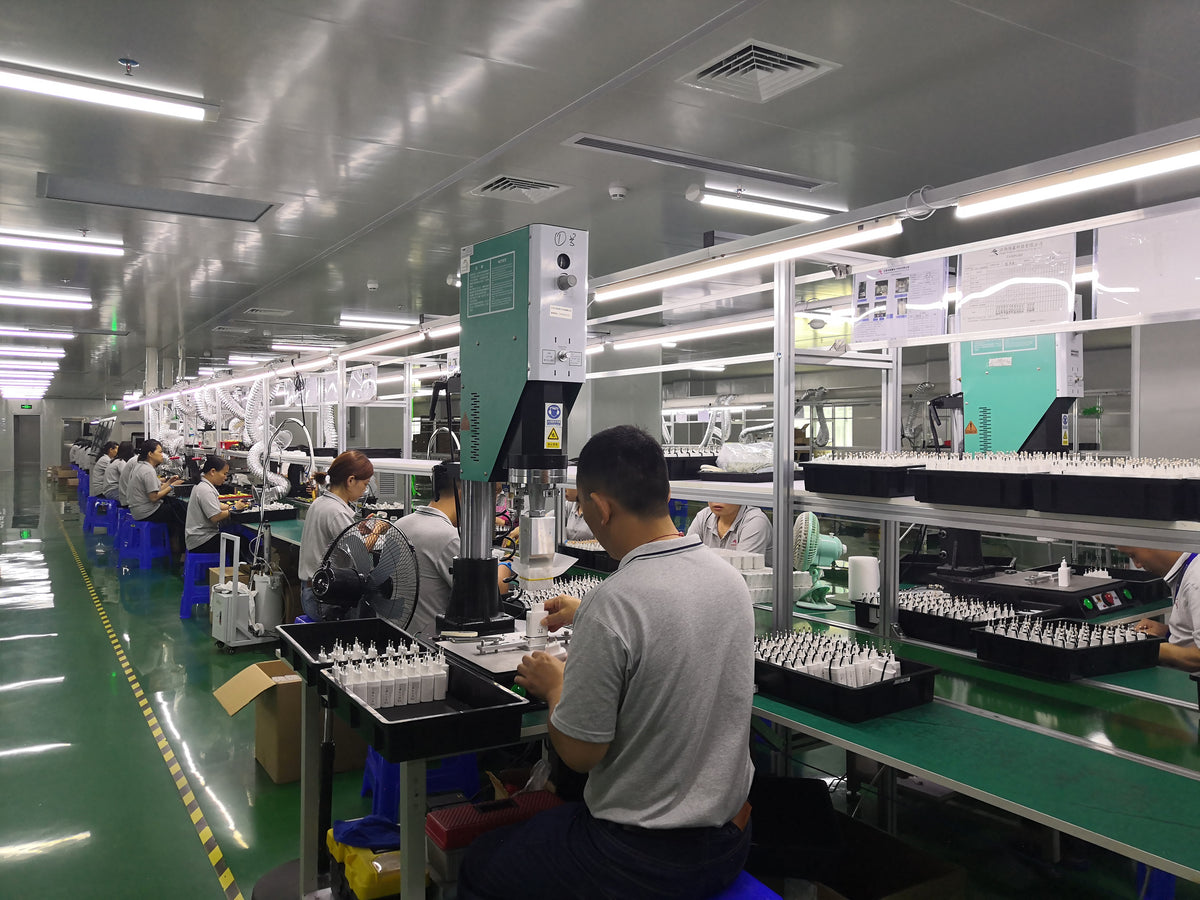

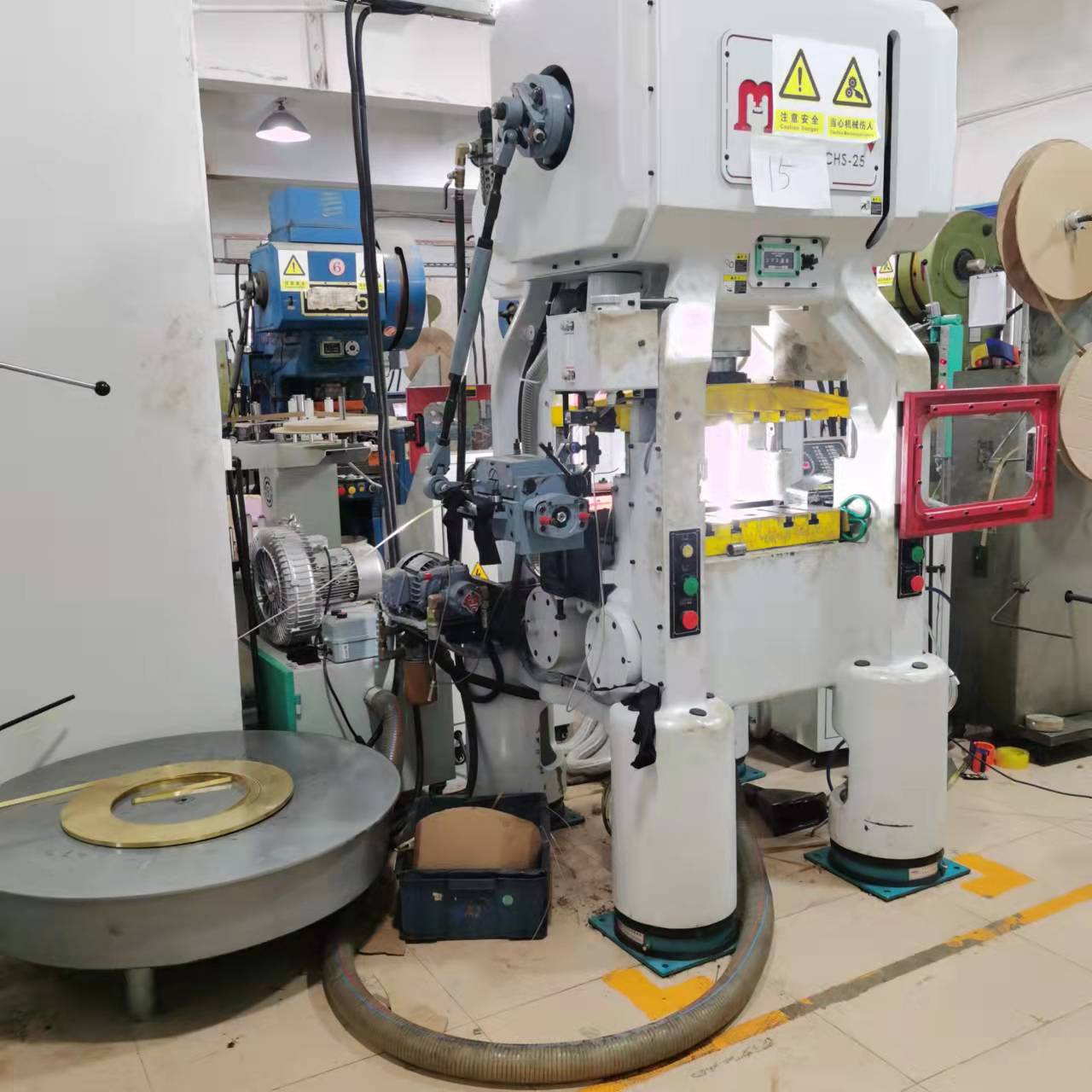

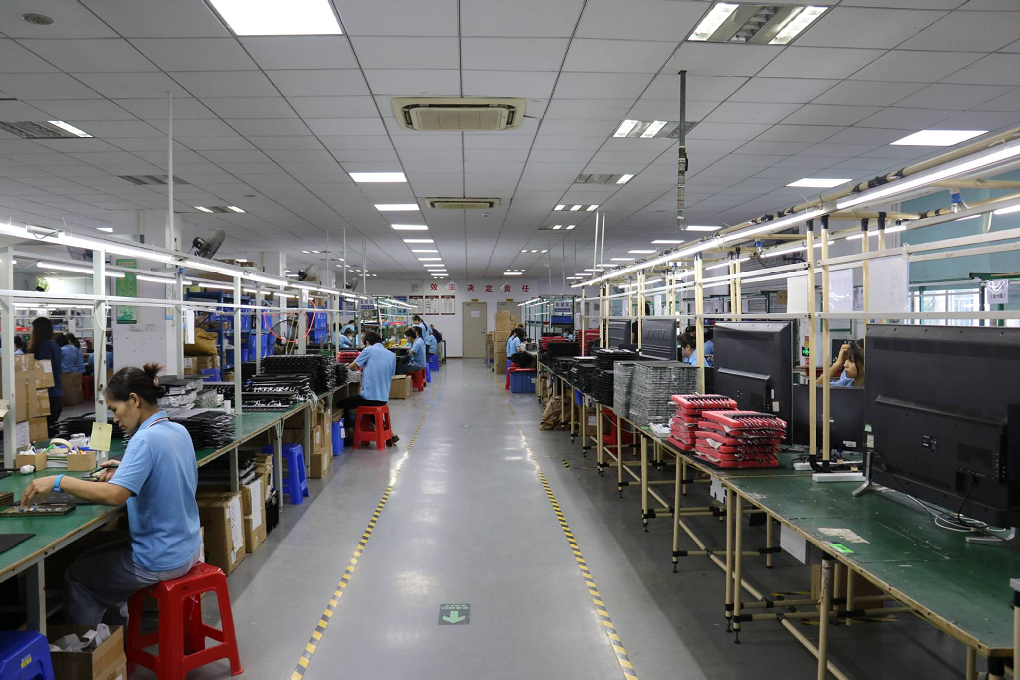

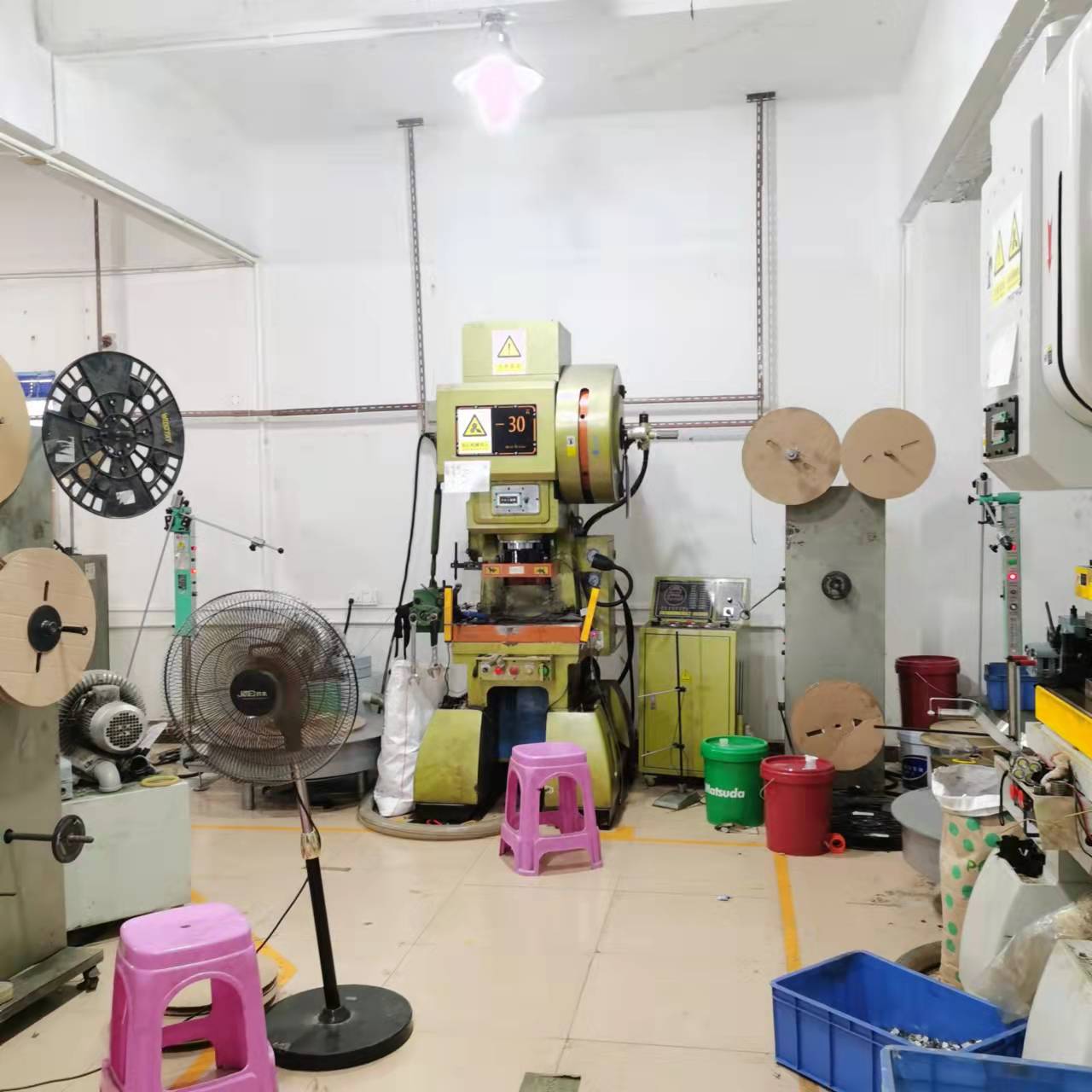

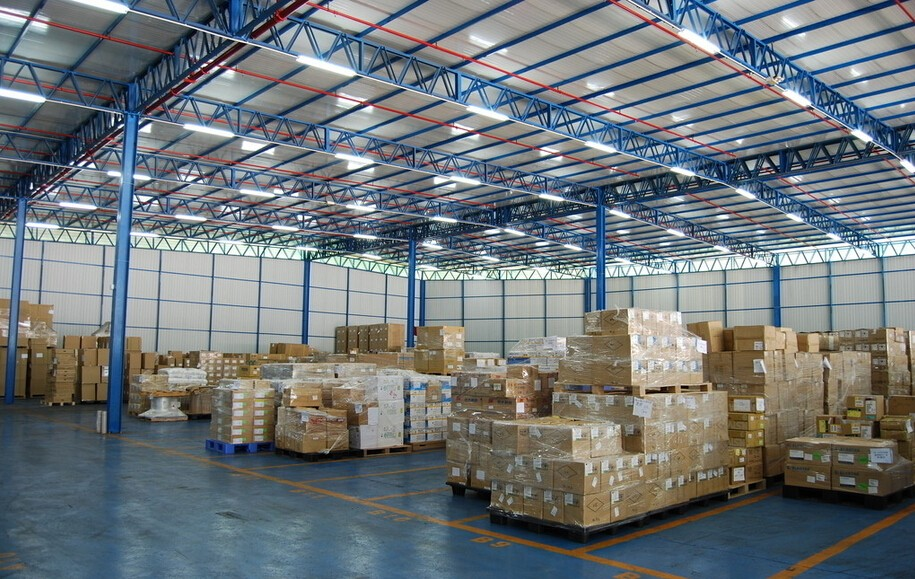

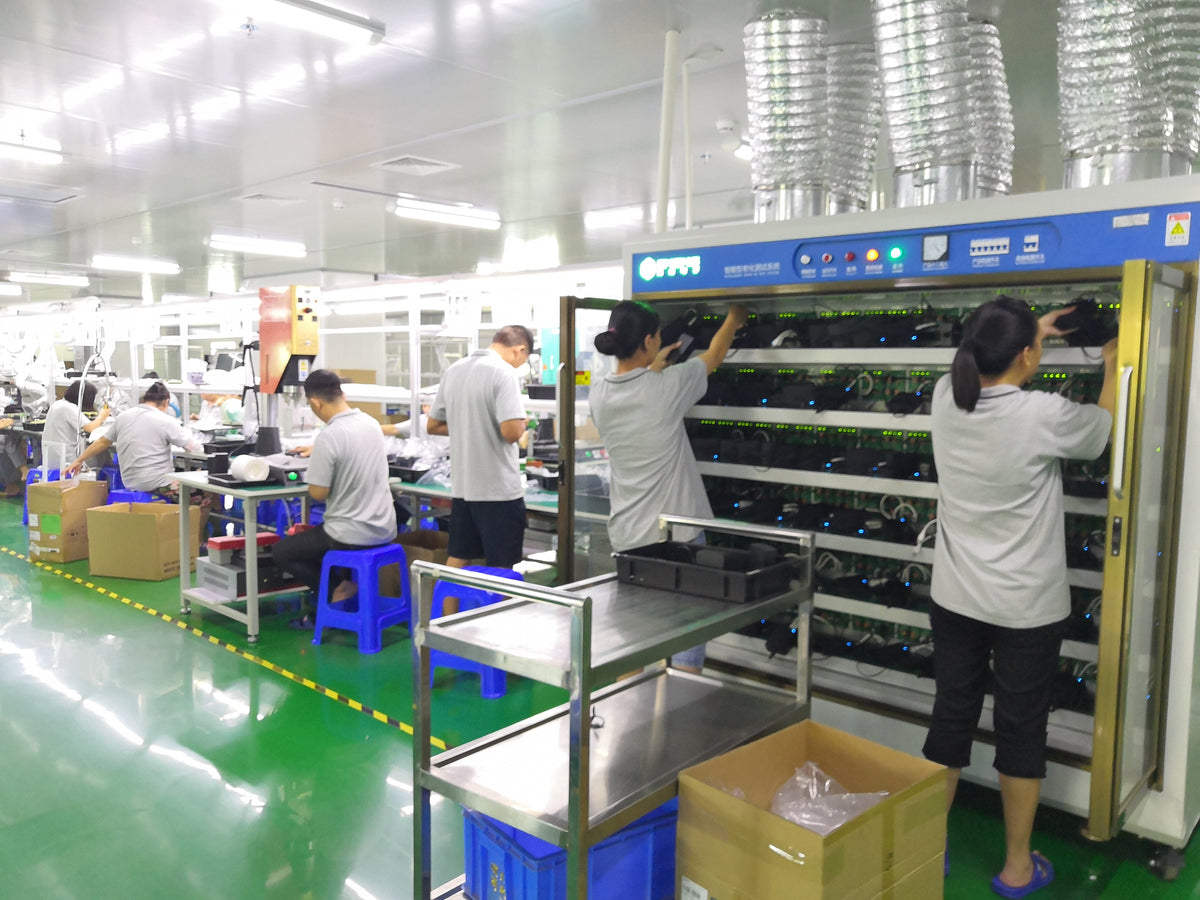

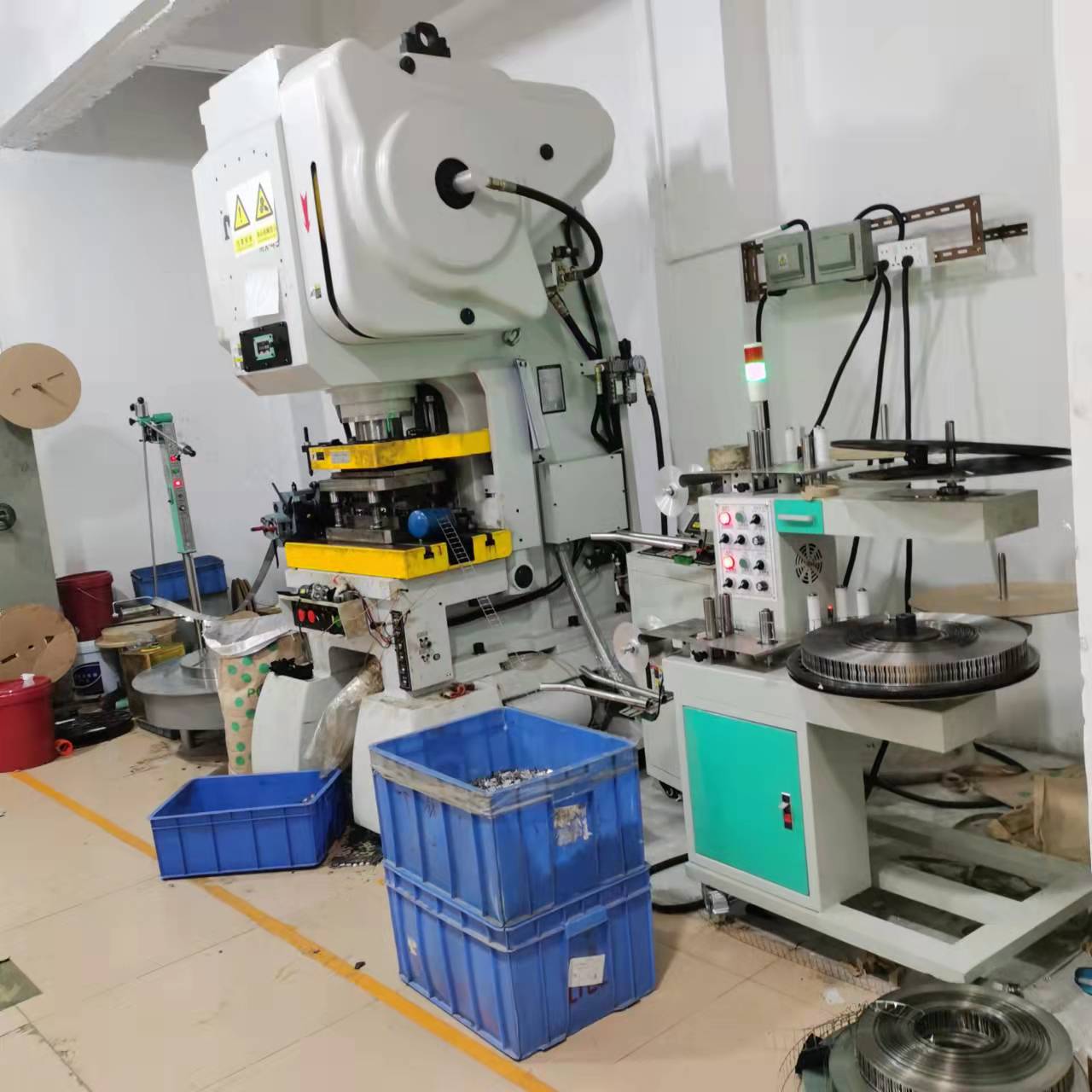

Factory View

Factory Advantages

Since foundation in 2009, Lianfaxun has been specializing in products and solution for professional thunderbolt 4 docking & cable, USB & USB-C docking hub, audio & video connectivity and multimedia adapters etc to meet various needs of customers.

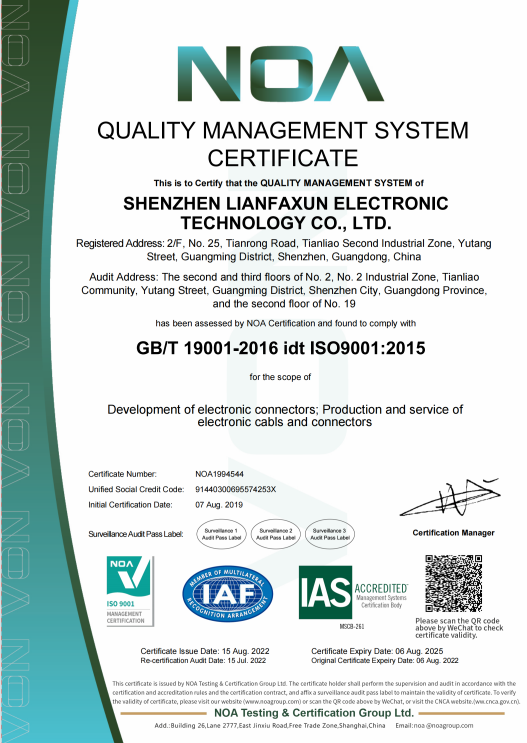

1, MFI, ISO9001,HDMI Licenses for factory, CE/FCC/RoHS etc for products;
