USB Docking Station OEM 13in1 DispalyLink Laptop Docking HDM I DVI Triple Display Compatible for Ubuntu Window s Chrom e Ma c OS

D3903V-A-0-BK-V1-S1

minimum order

1 piece

Country of Origin

Shenzhen

Quantity

$60.00 - $70.00 / piece

Contact Now

Products Status:Stock
Ports:≥ 10
Interface Type:Type B
Brand Name:Customized
Model Number:D3903V-A-0-BK-V1-S1
Place of Origin:GUA
Input:Type B Female
Interface:HDMI+DVI+VGA+Gigalan+USB3.0+SD/TF+3.5mm Audio+DC 12V PD+Power switch
Material:Acrylic glass panel+ABS+Alu
Chip:DL3900
HDM I Resolution:2048*1152@30Hz
VGA Resolution:1920*1080P@601Hz
DVI Resolution:2048*1152
MOQ:500 Pcs
Package:Customized Color Box as required
Compatible with:Windows 7 8 10 above; Mac 10.0 above ;Ubuntu; Chrome os

Recommend Products

USB Docking Station 13 in 1 Laptop Docking Station with HDMI&DVI&VGA Ports Simultaneously Triple Display 5 USB 3.0 Port Gigabit Ethernet Audio&Mic TF&SD Compatible with USB C/A Laptop

**Single display:
HDMI output: 2048*1152,

DVI output: 2048*1152,

VGA output: 1080P.

**Dual display:

HDMI output: 1920x1200,

VGA output:1920x1200 or DVI 1080P

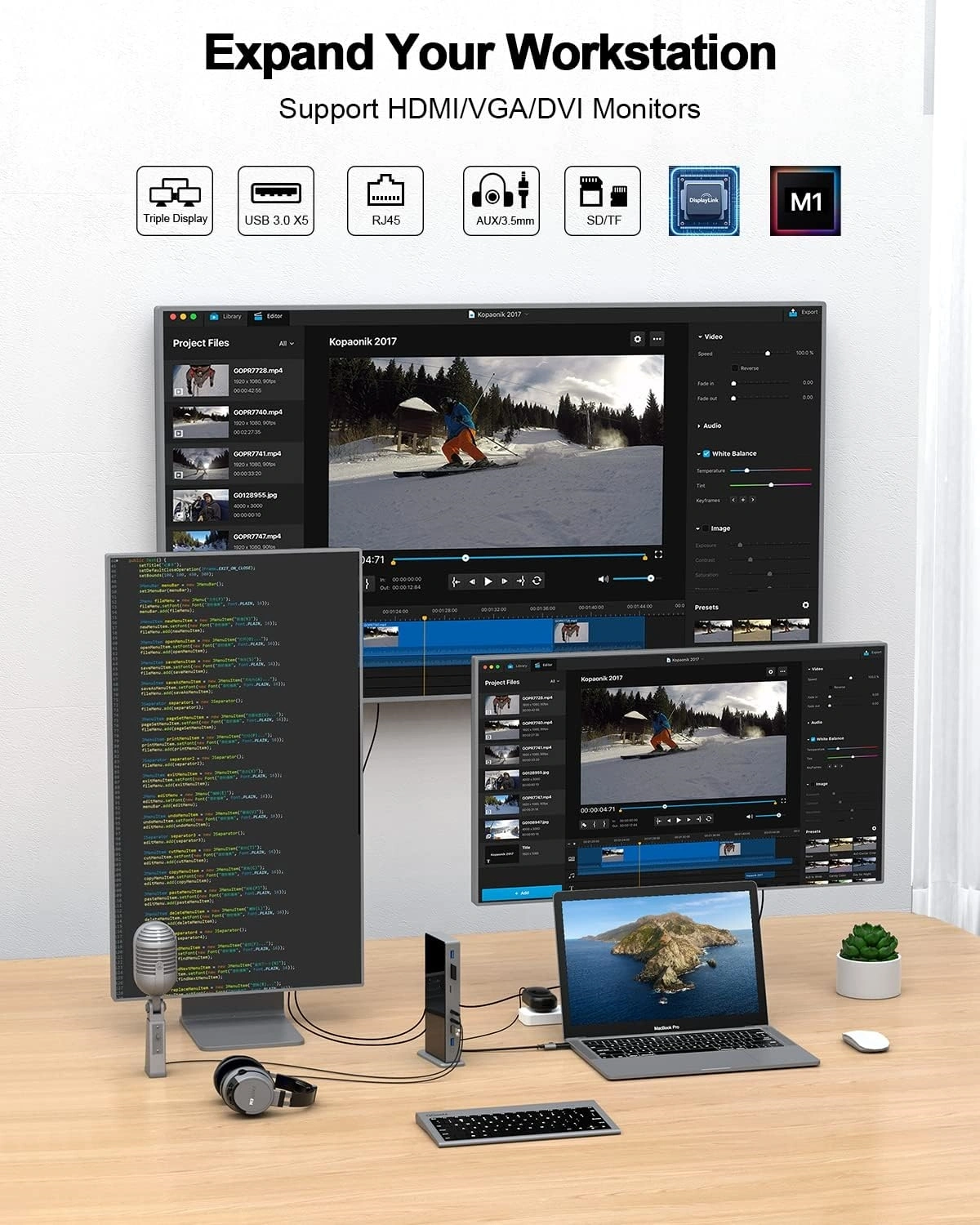

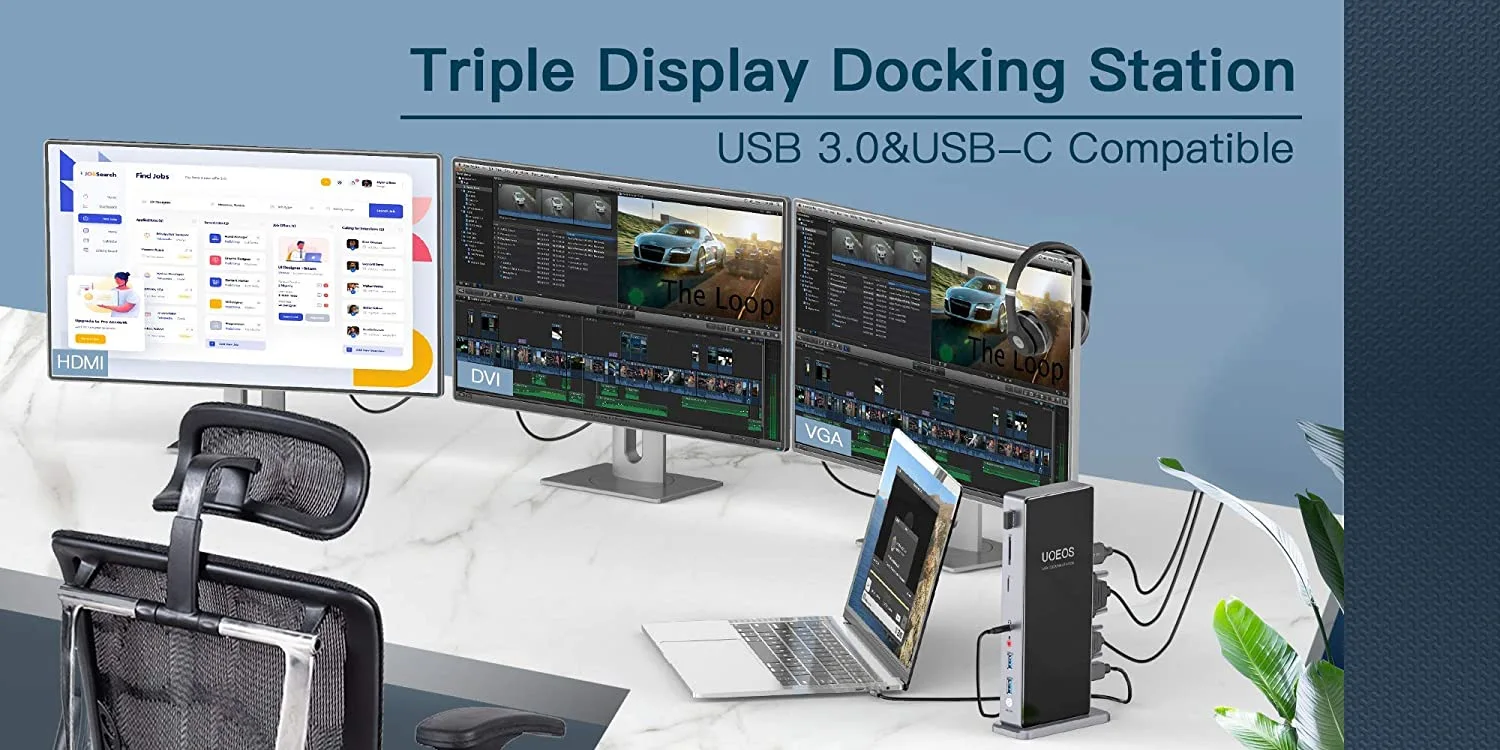

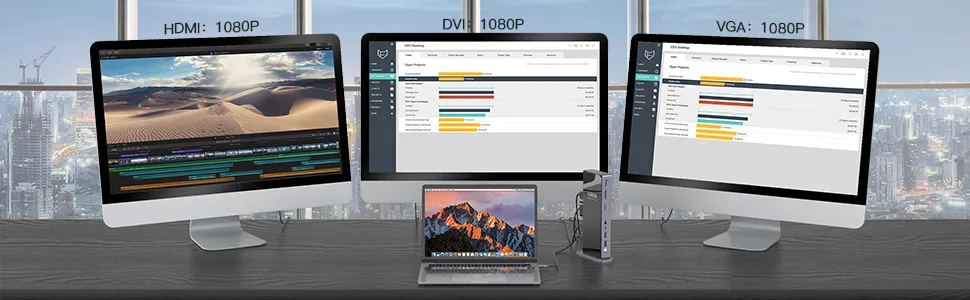

**Triple Display:

HDMI output:1080P,

DVI output:1080P,

VGA output:1080P.

Reminder:

Display mode: A(Laptop)AAA+A(Laptop)BCC

Universal Compatibility-USB A and USB C Laptop
Laptop / Desktop / PC / tablet's port is USB A / USB4 / Thunderbolt 3 /Thunderbolt 4 / USB Type C
Compatible Operating Systems(partial list)
Windows 10 / 8.x / 7 and Macs with 10.14.x / 10.15.x /11.x. Ubuntu,Chrome os, Android ect.

Kind tips:

1. Please install the LATEST displaylink driver before use it: https://www.synaptics.com/products/displaylink-graphics/downloads.
2. It's MUST to provide extra power for the docking when it working.
3. Sound Setting:
Windows users: Start>Setting>System>Sound: then change to what you want;
MacOS users: System Preferences>Sound>Output: then change to what you want.

4. Due to the process of EDID (Extended Display Identification Data) , it might blackout screen for a few seconds once you plug the
monitors. The recovery time depend on the monitor (60 seconds max)

5. It’s not fit gaming and HDCP (copy-protected) content playback from Blu-ray/Netflix/Prime/ iTunes/Hulu/etc.

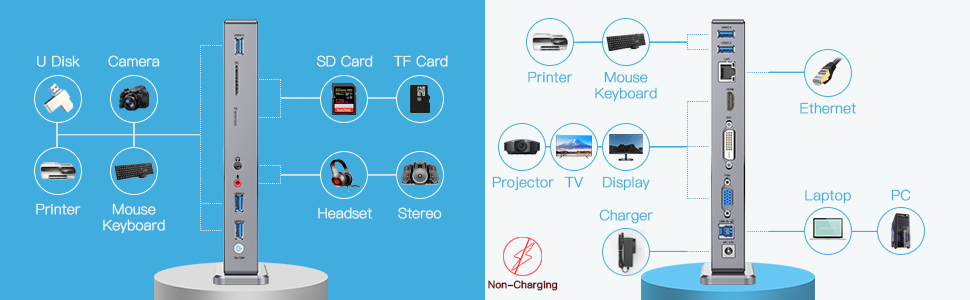

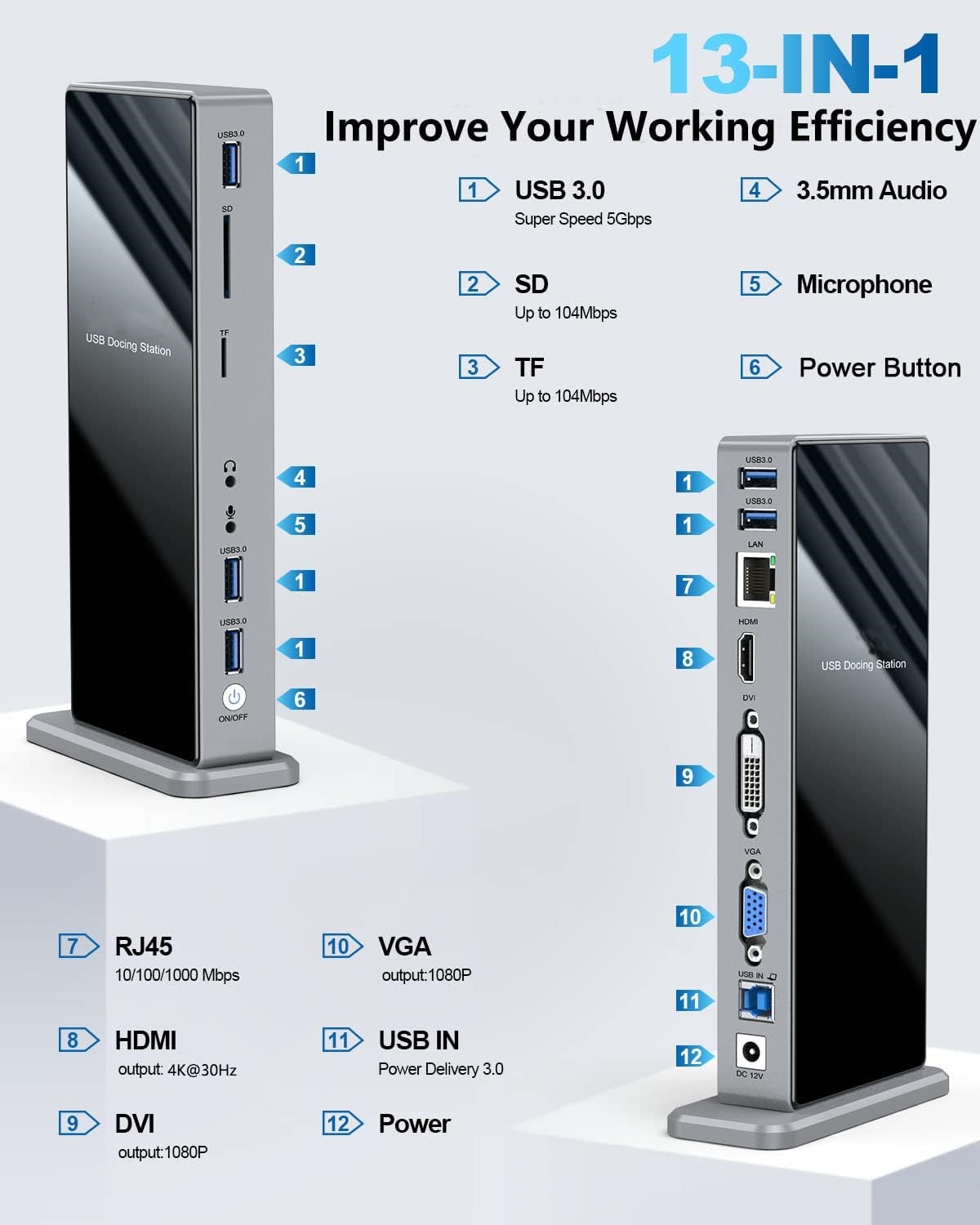

Features

Input	Type B IN Female
HDMI Port * 1	Up to 2048*1152@30Hz max
VGA Port* 1	Up to 1920*1080P@60Hz max
DVI Port* 1	Up to 2048*1152 max

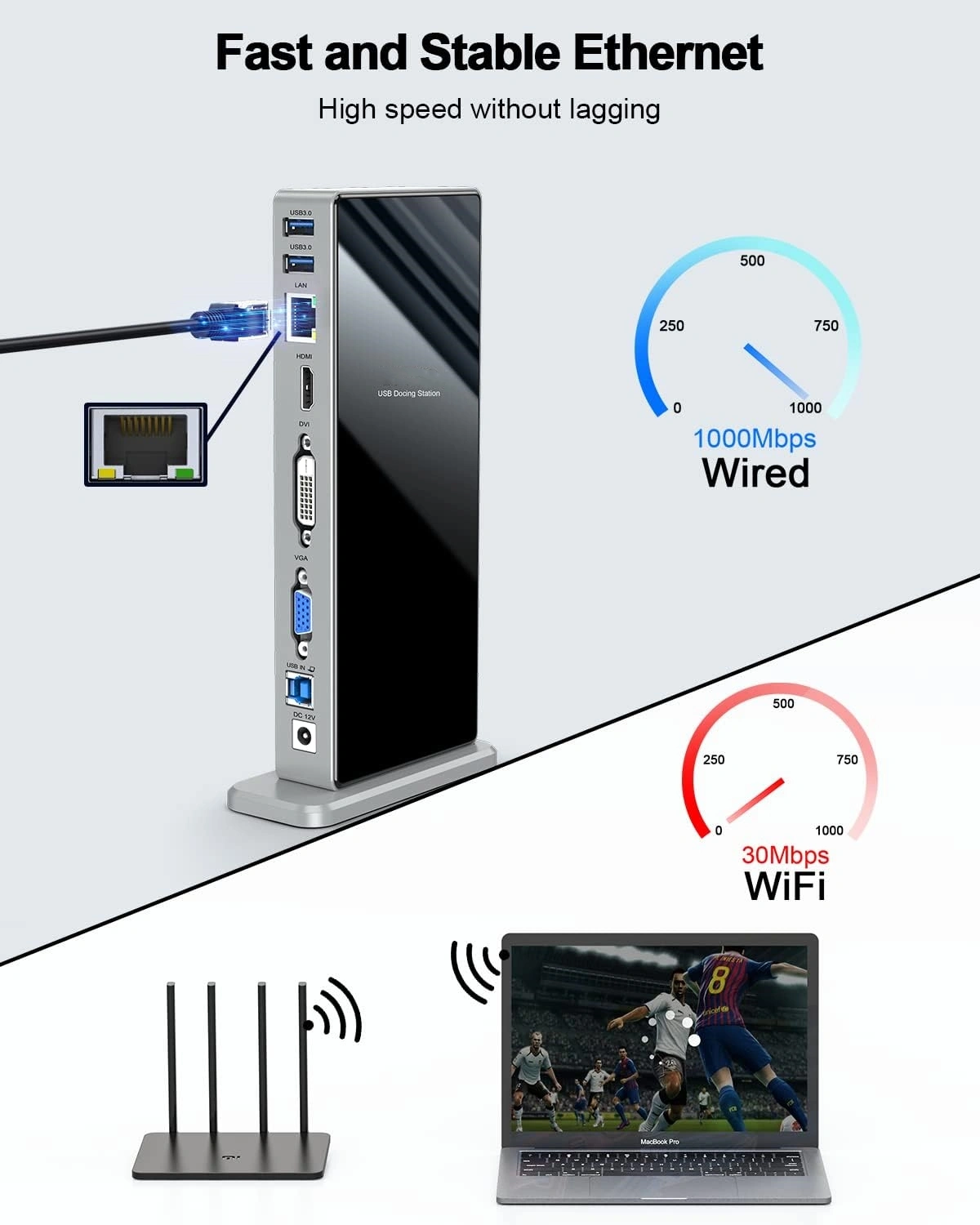

RJ45 Port * 1	1000Mbps Ethernet

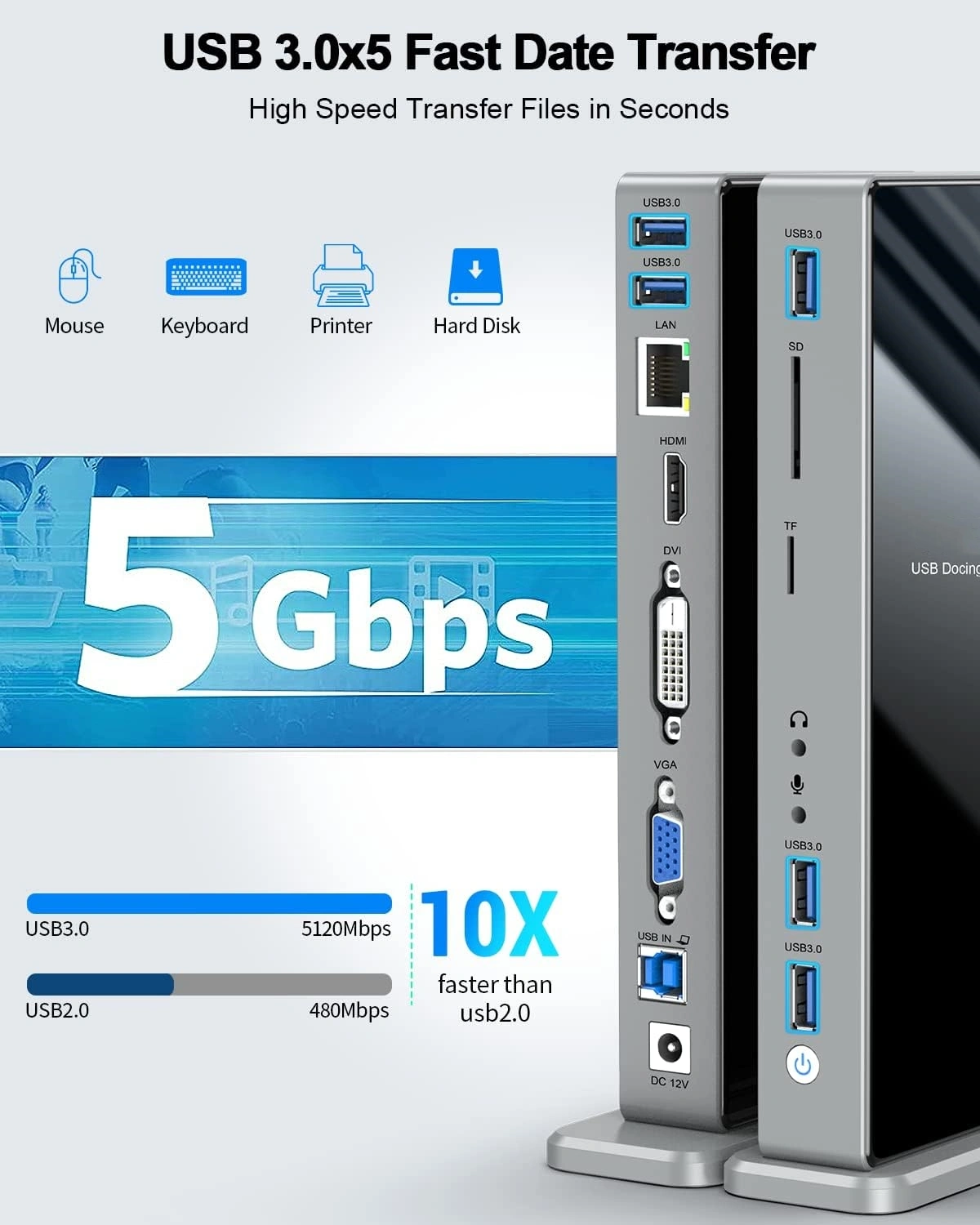

USB 3.0 * 5	USB 3.0 High speed up to 5Gbps
SD/TF Slot * 2	Support SD & TF 2 cards
Audio Jack * 2	3.5mm microphone & earphone
DC IN * 1	12V
Power Switch * 1	Power ON/OFF

More Informations

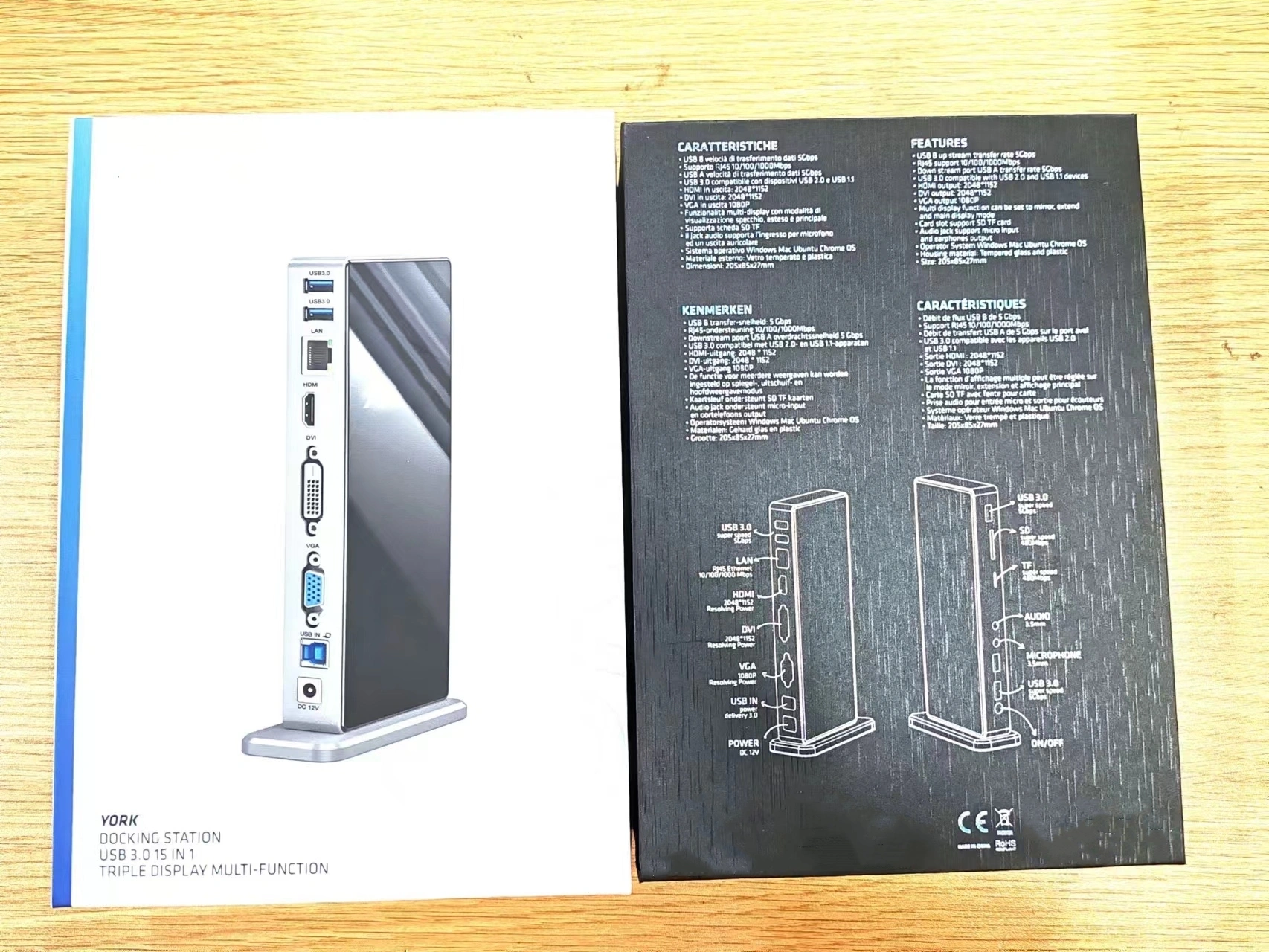

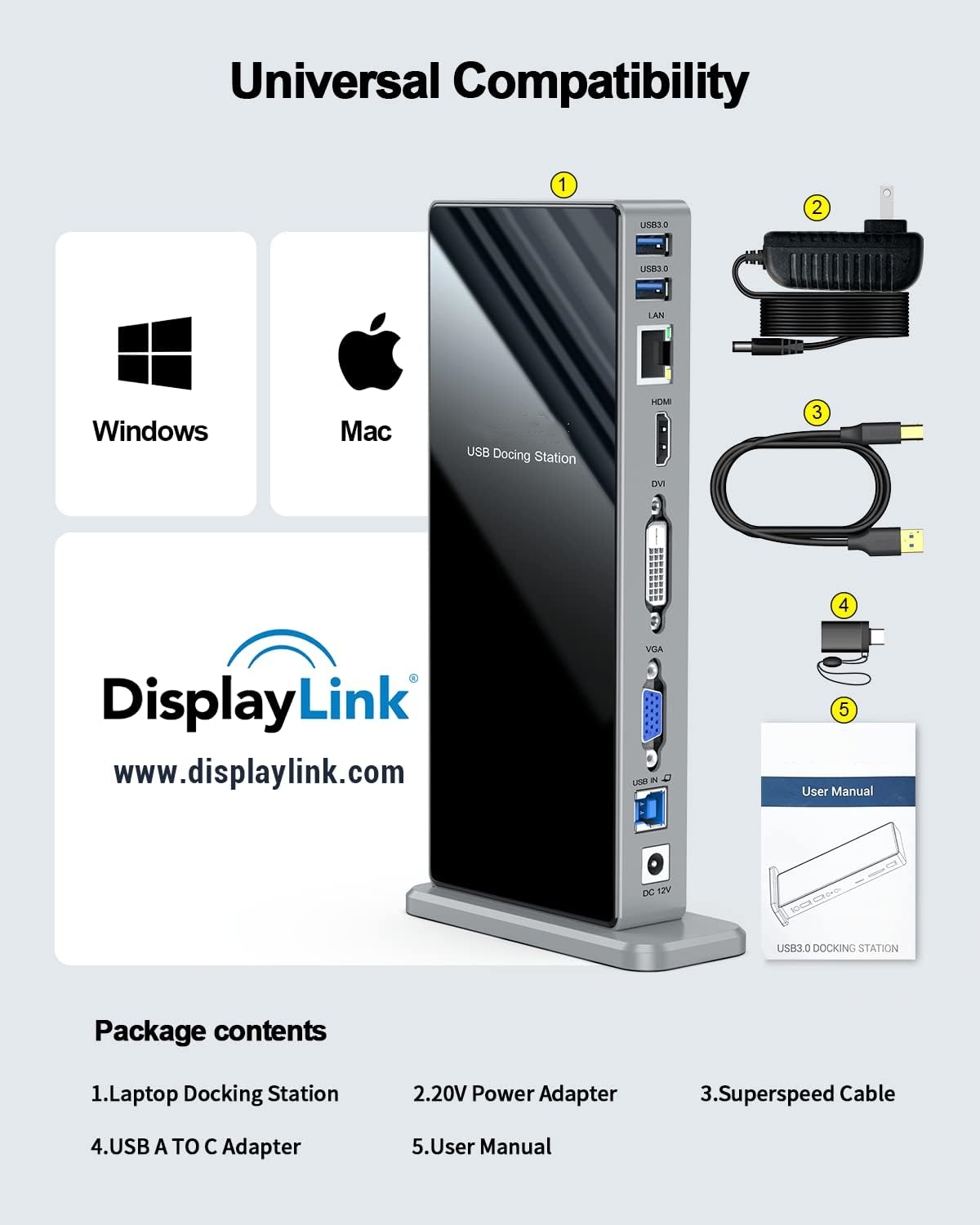

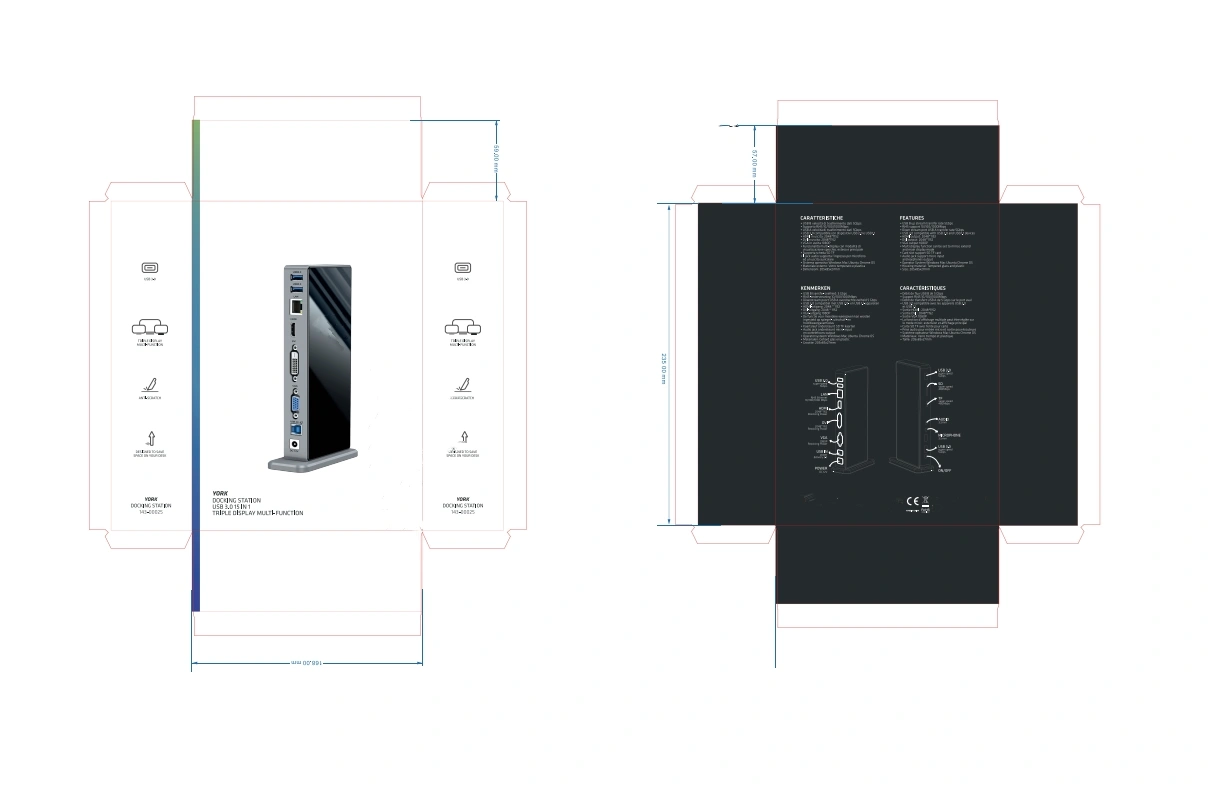

Package Image

Questions?	Answers!
How many monitors can display at the same time?	HDMI DVIand VGA can display the same screen when display mode A(Laptop)AAA+A(Laptop)BCC
What its the max resolution?	HDMI output: 20481152,DVI output: 20481152,VGA output: 1080P.

Payment

Delivery

Certifications

Exhibitions

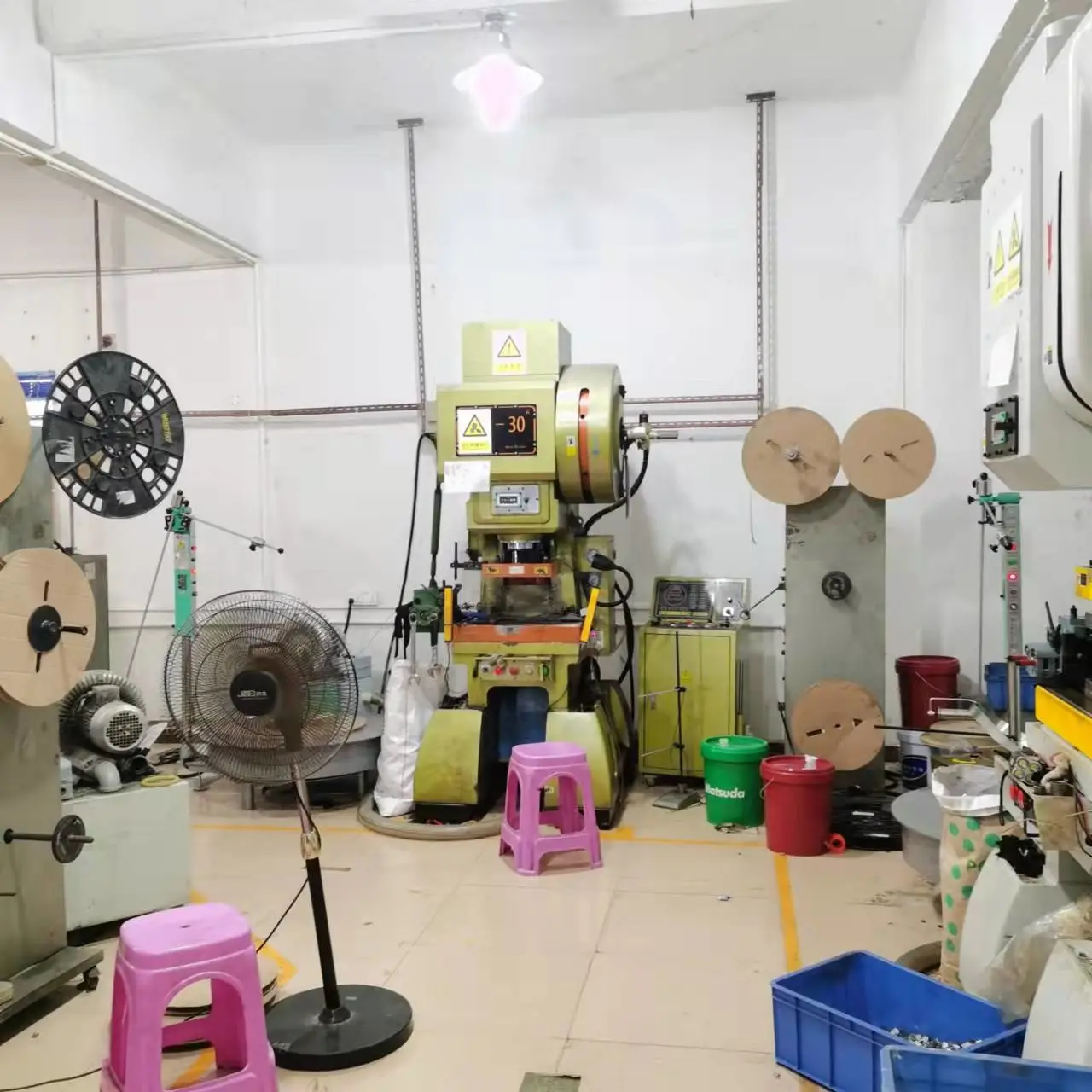

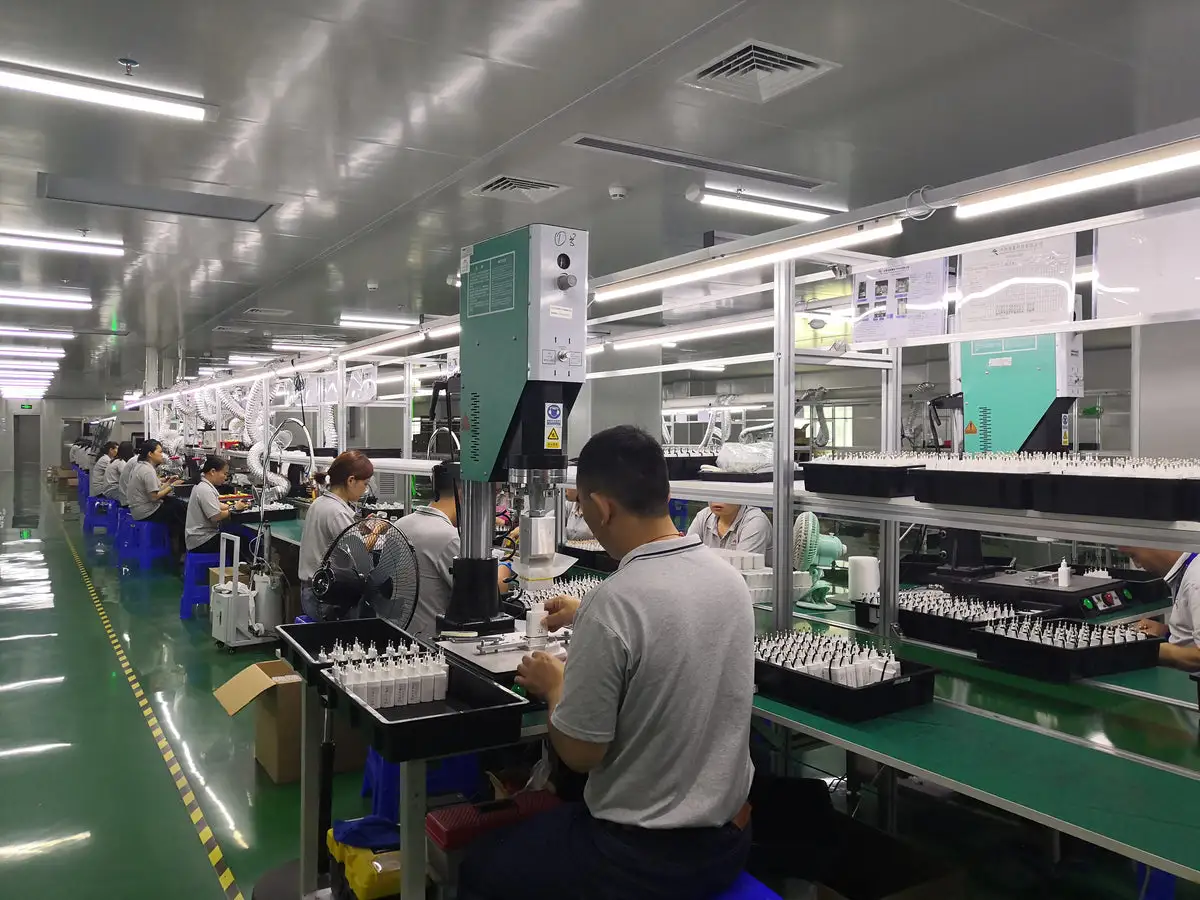

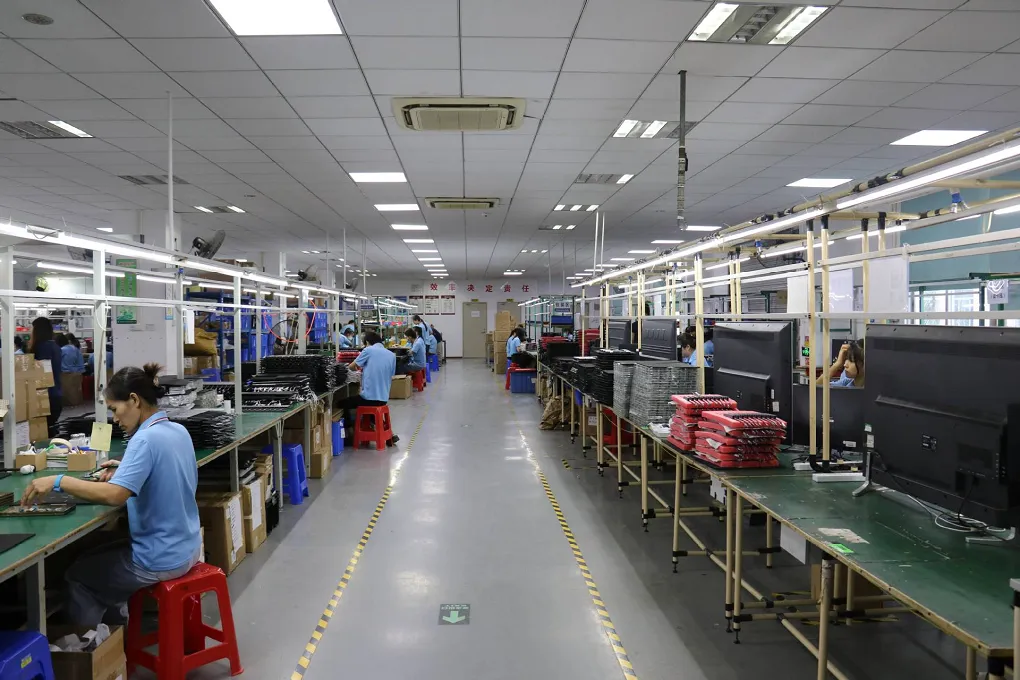

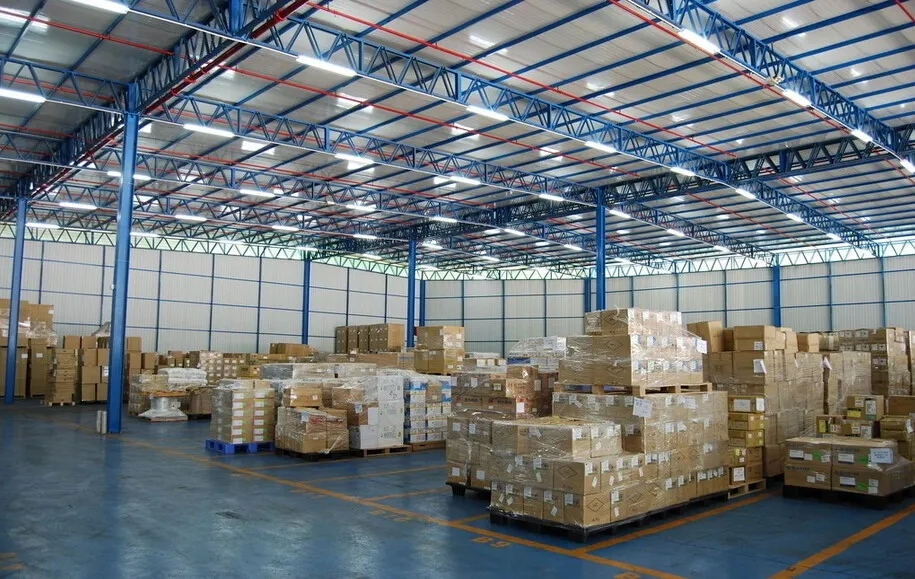

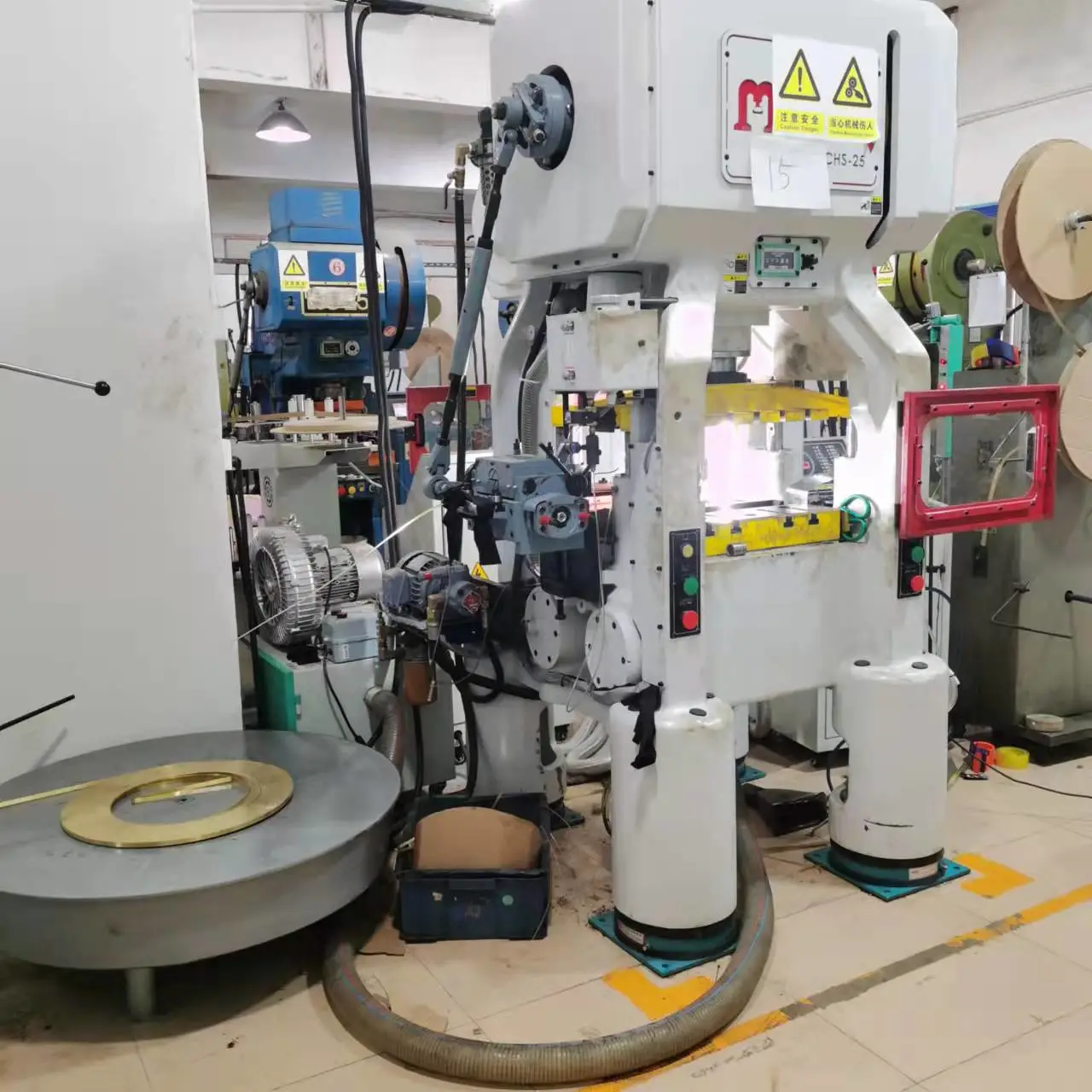

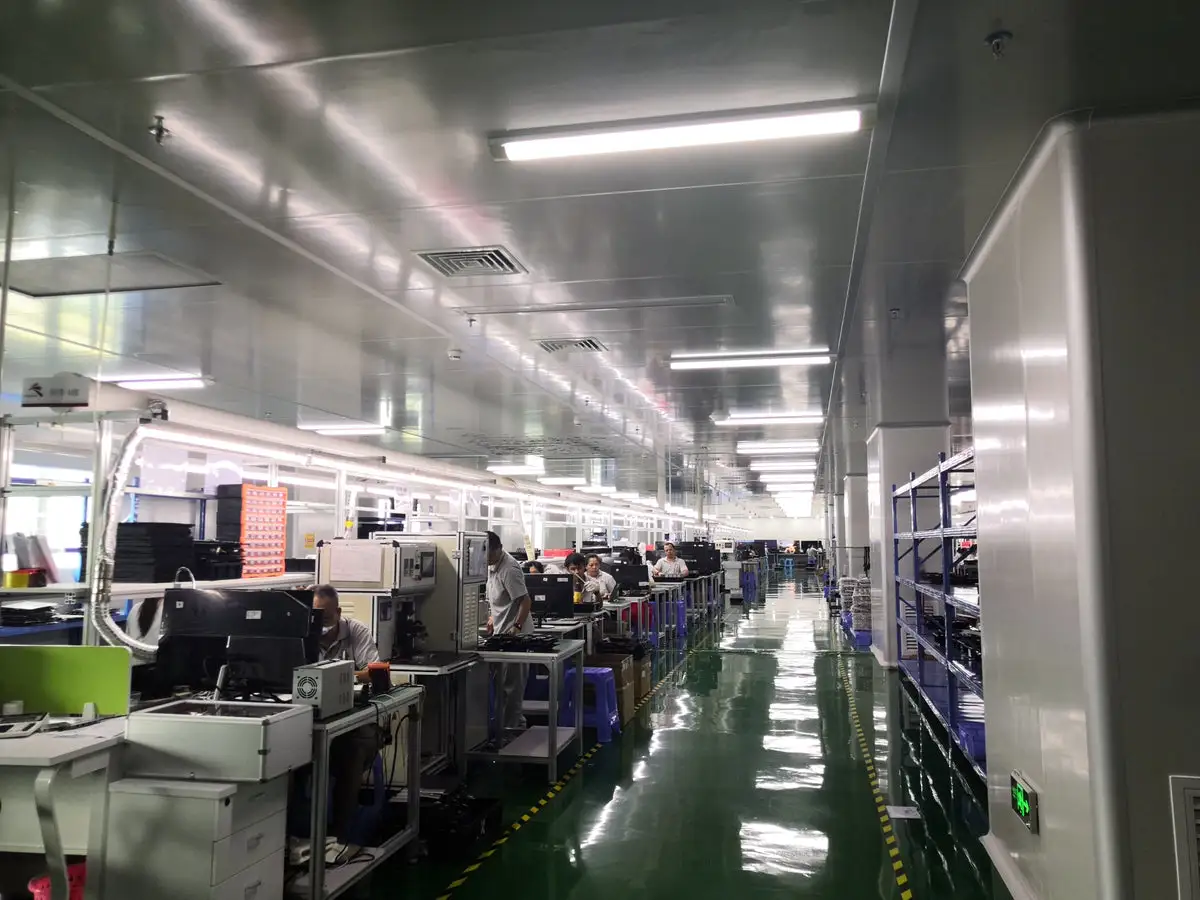

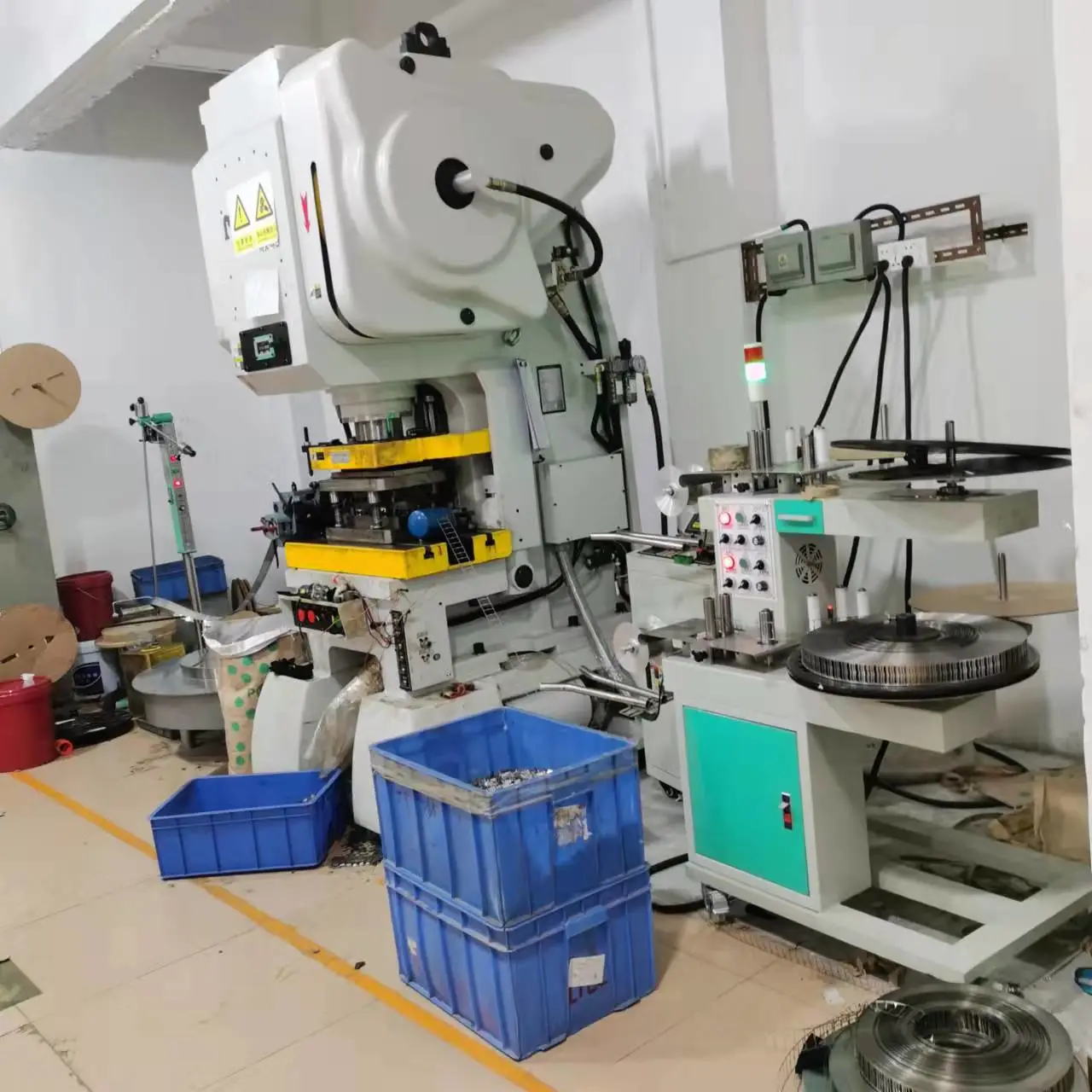

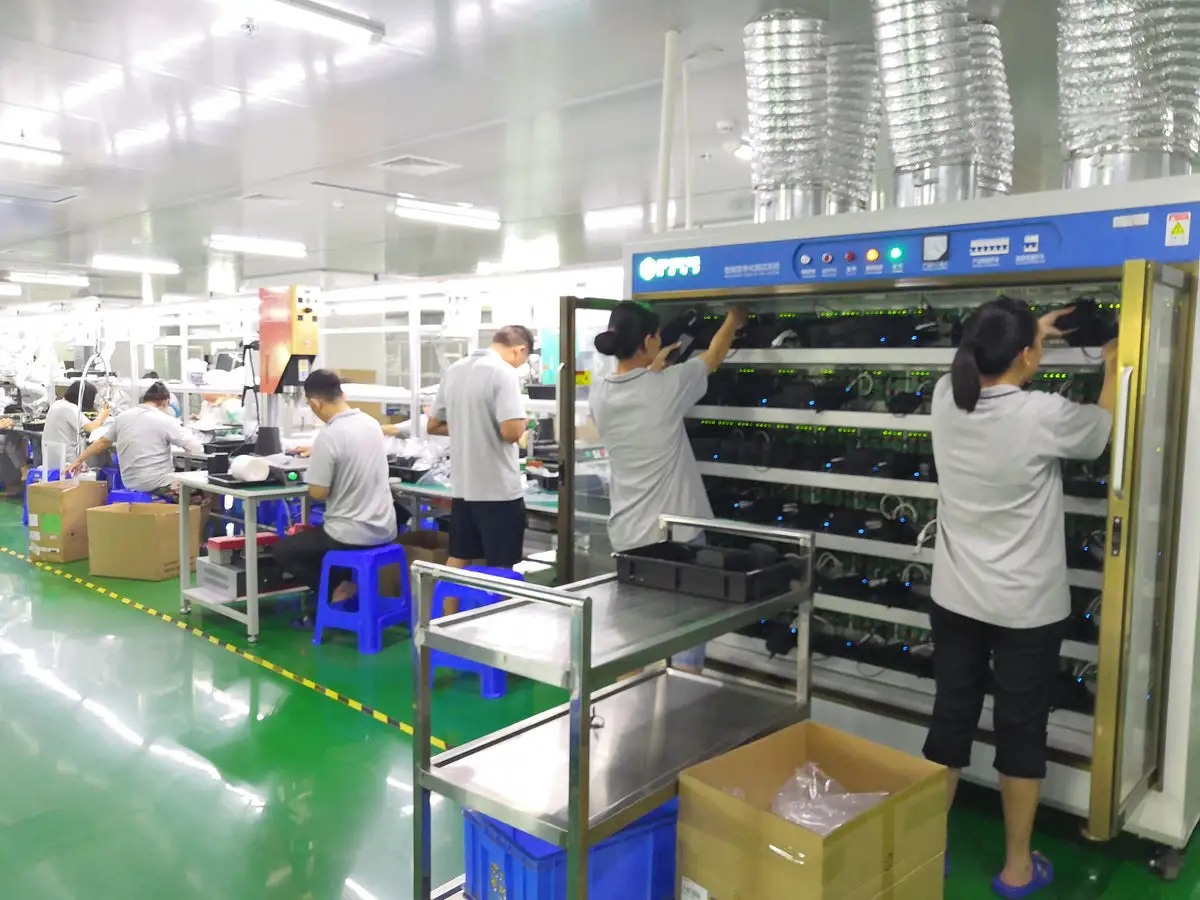

Factory View

Factory Advantages

Since foundation in 2009, Lianfaxun has been specializing in products and solution for professional thunderbolt 4 docking & cable, USB & USB-C docking hub, audio & video connectivity and multimedia adapters etc to meet various needs of customers.

1, MFI, ISO9001,HDMI Licenses for factory, CE/FCC/RoHS etc for products;
2, Flexible process and efficient shipment;
3, One stop service: design to shipment;
4, Rich manufacturing experience and excellent quality management;
5, Independently researched and developed with rich products.
