USB3.0 Docking Station OEM BK 11in1 USB3.0 Hub Dual HDM I VGA RJ45 Triple Displays Compatible for MacBoo k Pro Del l Lenov o H P
D3808-A-0.25-BK
minimum order
1 piece
Country of Origin
Shenzhen
Quantity
$41.00 - $45.00 / piece
- Products Status:Stock
- Ports:11
- Interface Type:USB 3.1
- Brand Name:Customized
- Model Number:D3808-A-0.25-BK
- Place of Origin:GUA
- Input:USB3.1(TYPE-C) Male
- Interface:HDMI*2+VGA*1+USB3.0*2+SD/TF*2+RJ45*1+3.5mm Audio*2+USB C power
- Material:Acrylic glass panel+ABS
- Chipset:DL3900
- HDM I Resolution:2048*1152@60HZ
- VGA Resolution:1920*1080P@60HZ
- MOQ:500 Pcs
- Package:Customized Color Box as requried
- Warranty:12 Months / 1 Years
- Compatible with:Windows 10 above; Mac 10.0 above; Ubuntu; Chrome os
Recommend Products
11 Ports Triple Display USB Docking Station, Massive Expansion, High-Speed, High-Definition
**Support Single/ Dual / Triple Display
√HDMI1: 1920*1080@60Hz(MAX)
√HDMI2: 1920*1080@60Hz(MAX)
√VGA: 1920*1080@60Hz(MAX)
√HDMI1: 1920*1080@60Hz(MAX)
√HDMI2: 1920*1080@60Hz(MAX)
√VGA: 1920*1080@60Hz(MAX)
**Dual display: 1920*1080@60Hz+1920*1080@60Hz(MAX)
HDMI1+HDMI2/HDMI1+VGA/HDMI2+VGA
**Triple Display:
HDMI1+HDMI2+VGA: 1920*1080@60Hz+1920*1080@60Hz+1920*1080@60Hz(MAX)
Reminder:

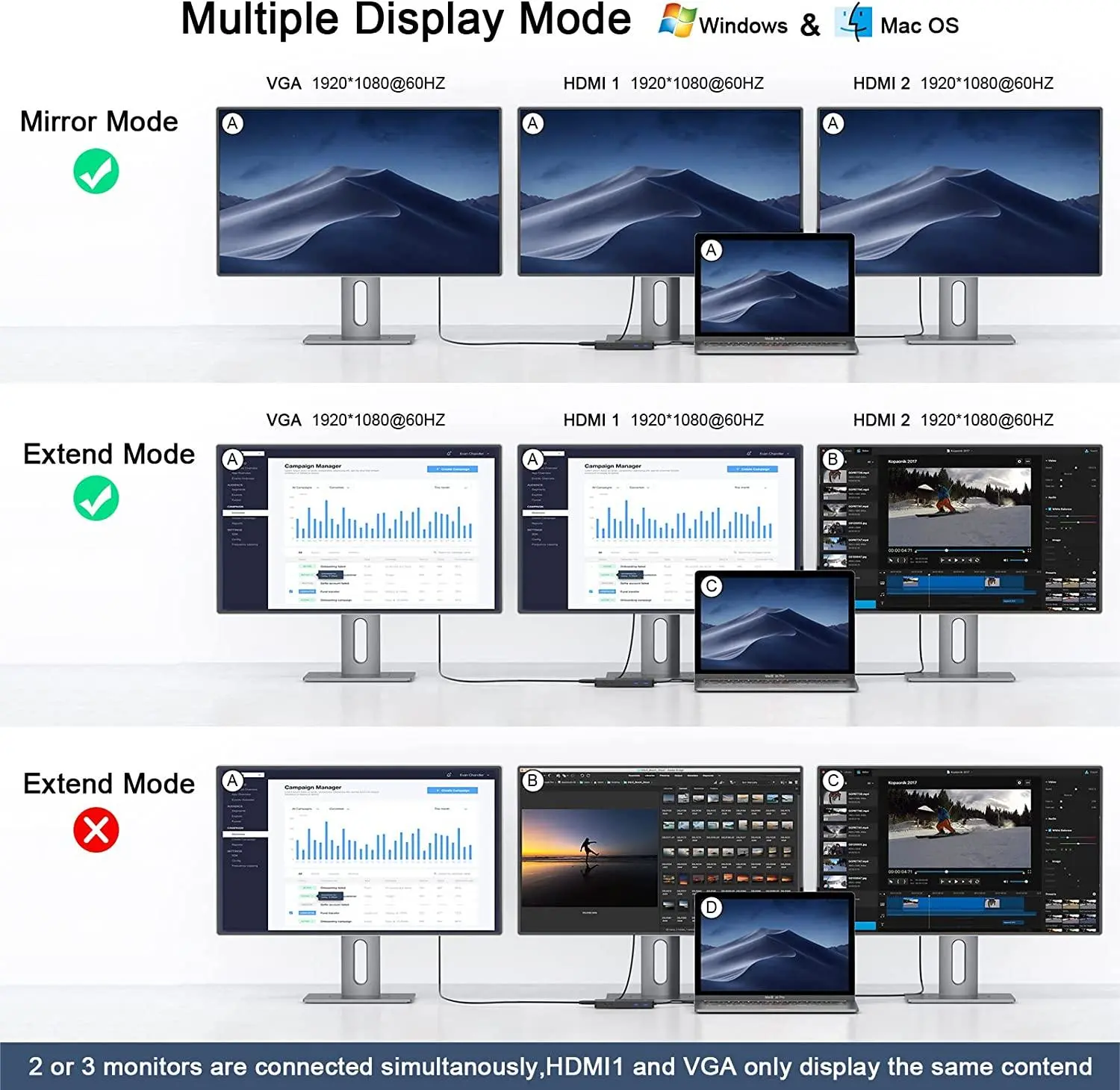

HDMI1 and VGA only display the same screen when display mode: A(Laptop)AAA+A(Laptop)ABB+A(Laptop)ABC
Universal Compatibility-USB A and USB C Laptop
Laptop / Desktop / PC / tablet's port is USB A / USB 4 / Thunderbolt 3 /Thunderbolt 4 / USB Type C
Compatible Operating Systems(partial list)
Windows 10 / 8.x / 7 and Macs with 10.14.x / 10.15.x /11.x. Ubuntu,Chrome os, Android ect.
Not compatible with: Mac OS 10.13.x or earlier, Linux / Unix, and ARM-based Windows Systems
Kind tips:
1. Please install the LATEST displaylink driver before use it: https://www.synaptics.com/products/displaylink-graphics/downloads.2. When connecting three displays at the same time, HDMI1 audio takes priority. When HDMI2 audio is needed, you need to manually
select or unplug the HDMI1 display connection.3. Some HOSTs that do not support the Alt mode function, HDMI1 does not display
3. Sound Setting:
Windows users: Start>Setting>System>Sound: then change to what you want;
Mac OS users: System Preferences>Sound>Output: then change to what you want.5. Due to the process of EDID (Extended Display
Identification Data) , it might blackout screen for a few seconds once you plug the monitors. The recovery time depend on the monitor
(60 seconds max)
Features
Input | 1 * USB 3.0 A port with 0.25 meter cable |
HDMI port * 2 | Up to 2048*1152 (Only sound with one) |
VGA port * 1 | Up to 1080P@60Hz(1920*1080) (without sound) |
LAN port * 1 | 1000/100/10Mbps |
SD/TF slot * 2 | Support SD & TF 2 cards |
USB3.0 * 2 | USB 3.0 High speed up to 5Gbps |
Audio Jack * 2 | 3.5mm microphone & earphone |
USB3.1 Type C * 1 | Charging for the Docking |
More Informations

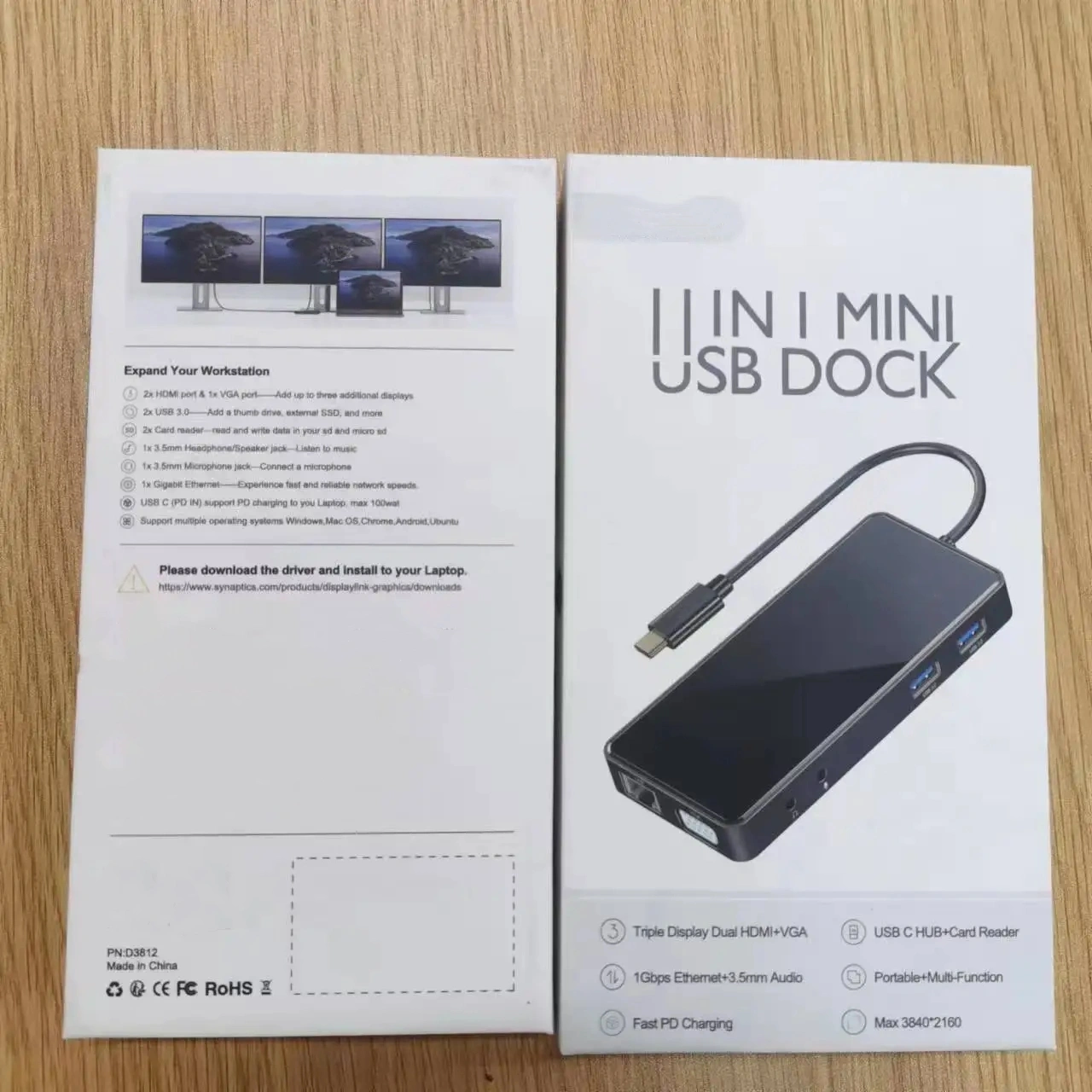

Package Image
Questions? | Answers! |
How many monitors can display at the same time? | HDMI1 and VGA only display the same screen when display mode A(Laptop)AAA+A(Laptop)ABB+A(Laptop)ABC |
What its the max resolution? | The max resolution is 1920*1080@60HZ |
Does this docking station connect to computer via usb c? | Yes, it does. There is a USB C/M to A/F adapter in the package, you will find when open it. |
Does it work with Li ngtning port? | No, it doesn't. D3808 is supports USB A and USB C port. |
Payment
Delivery

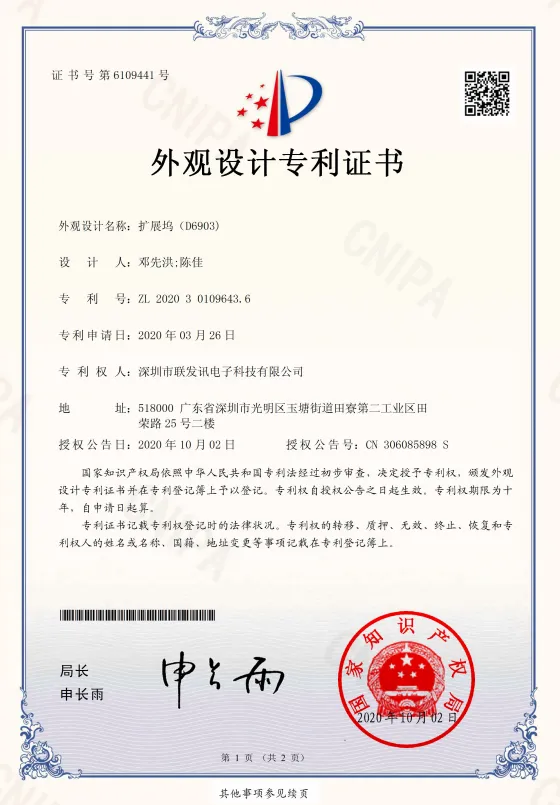

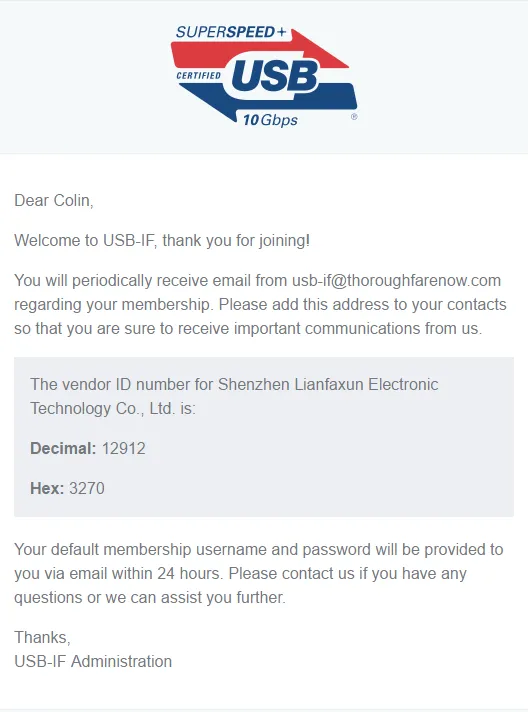

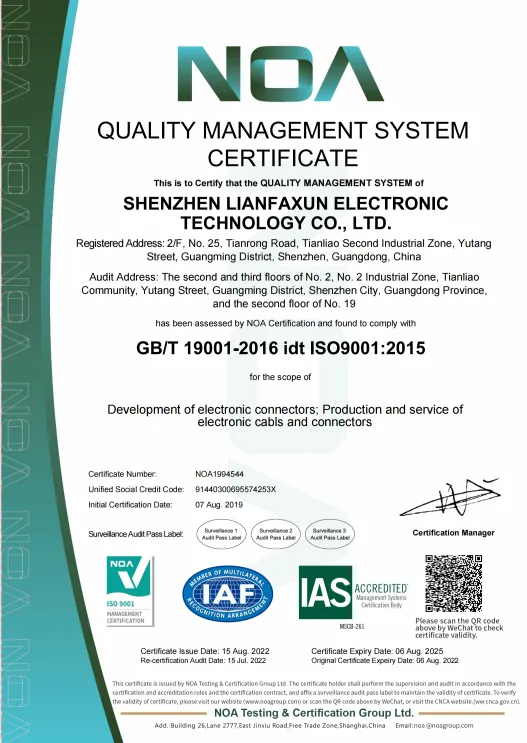

Certifications
Exhibitions

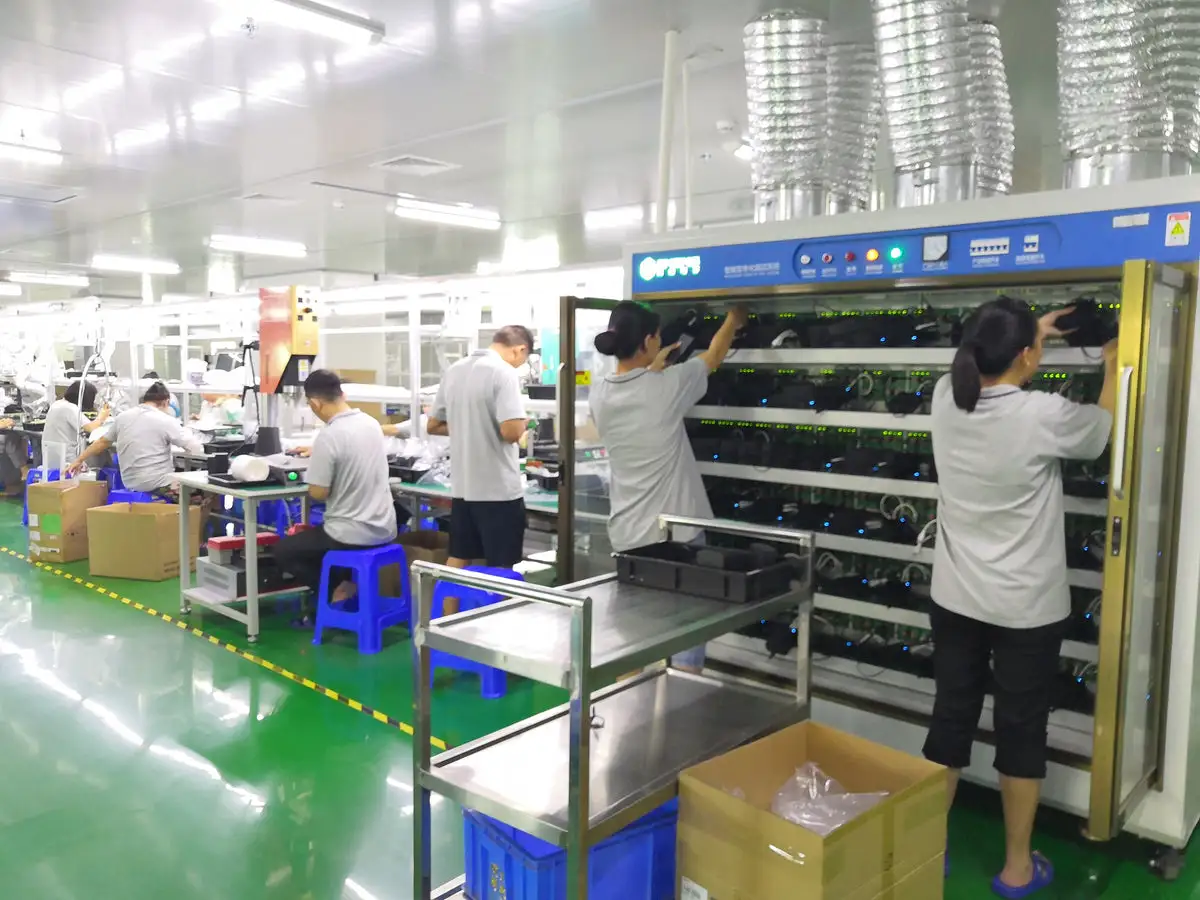

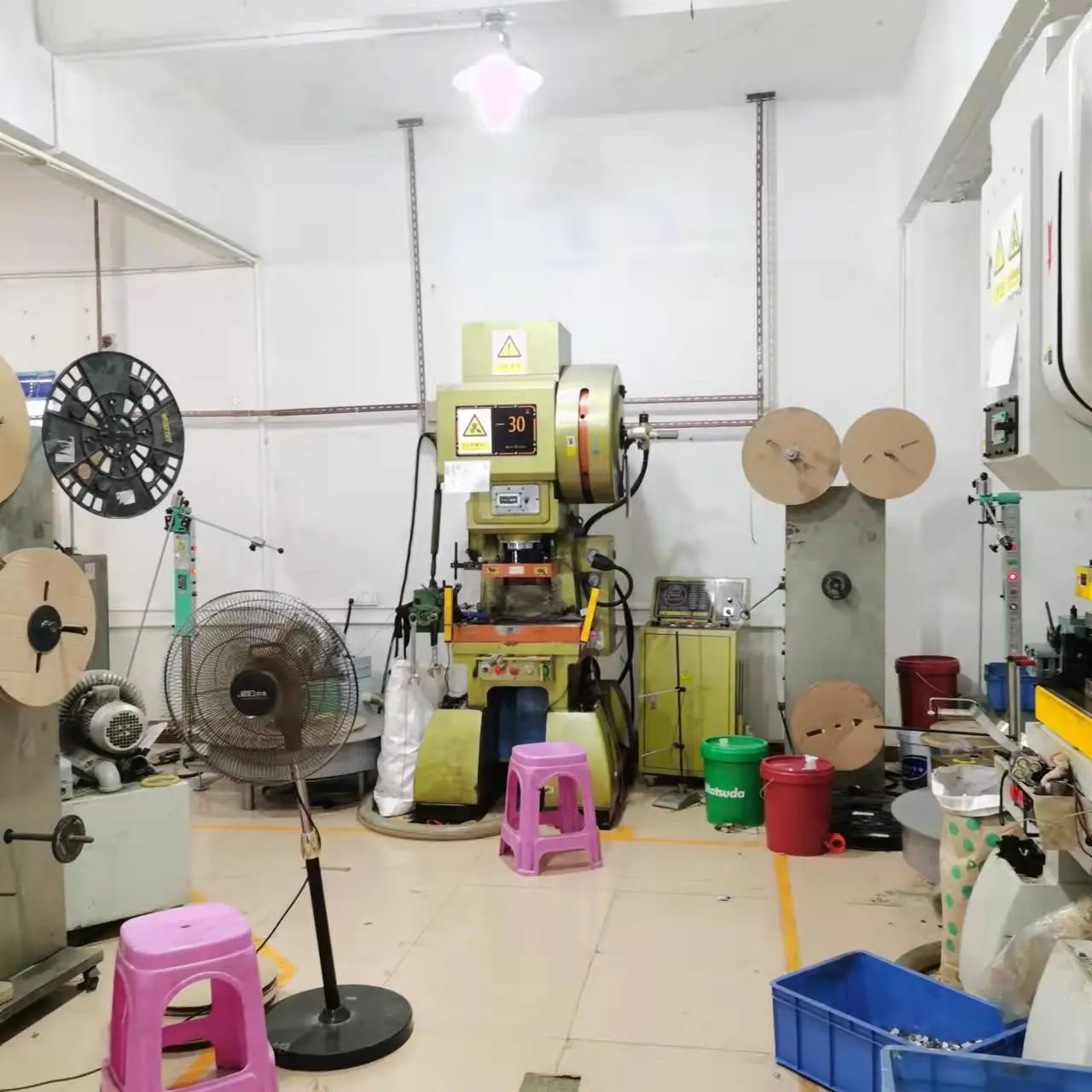

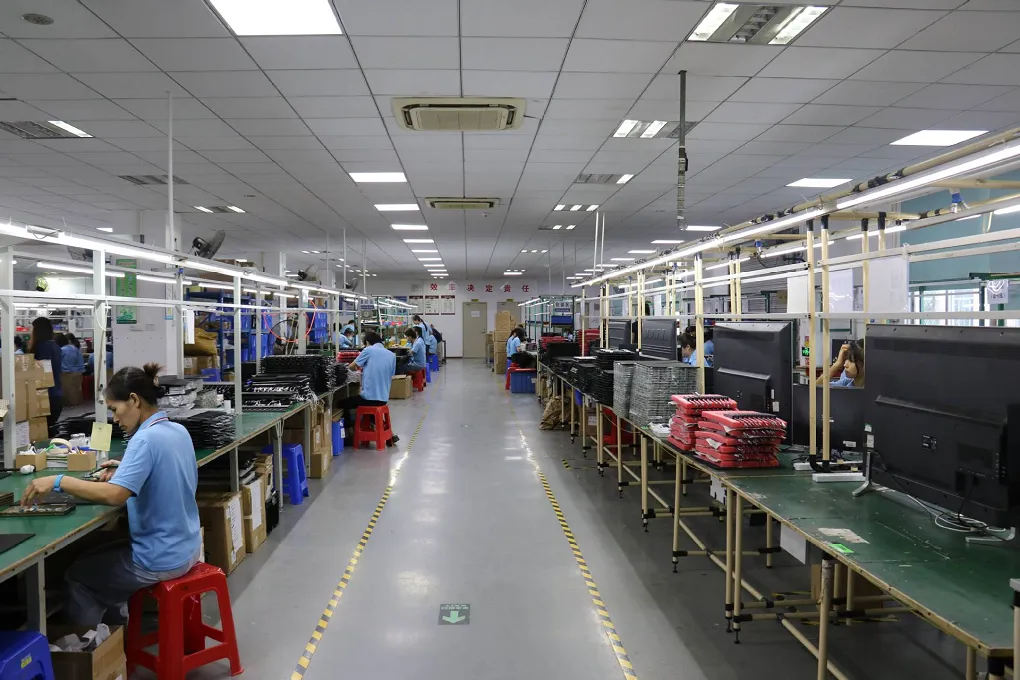

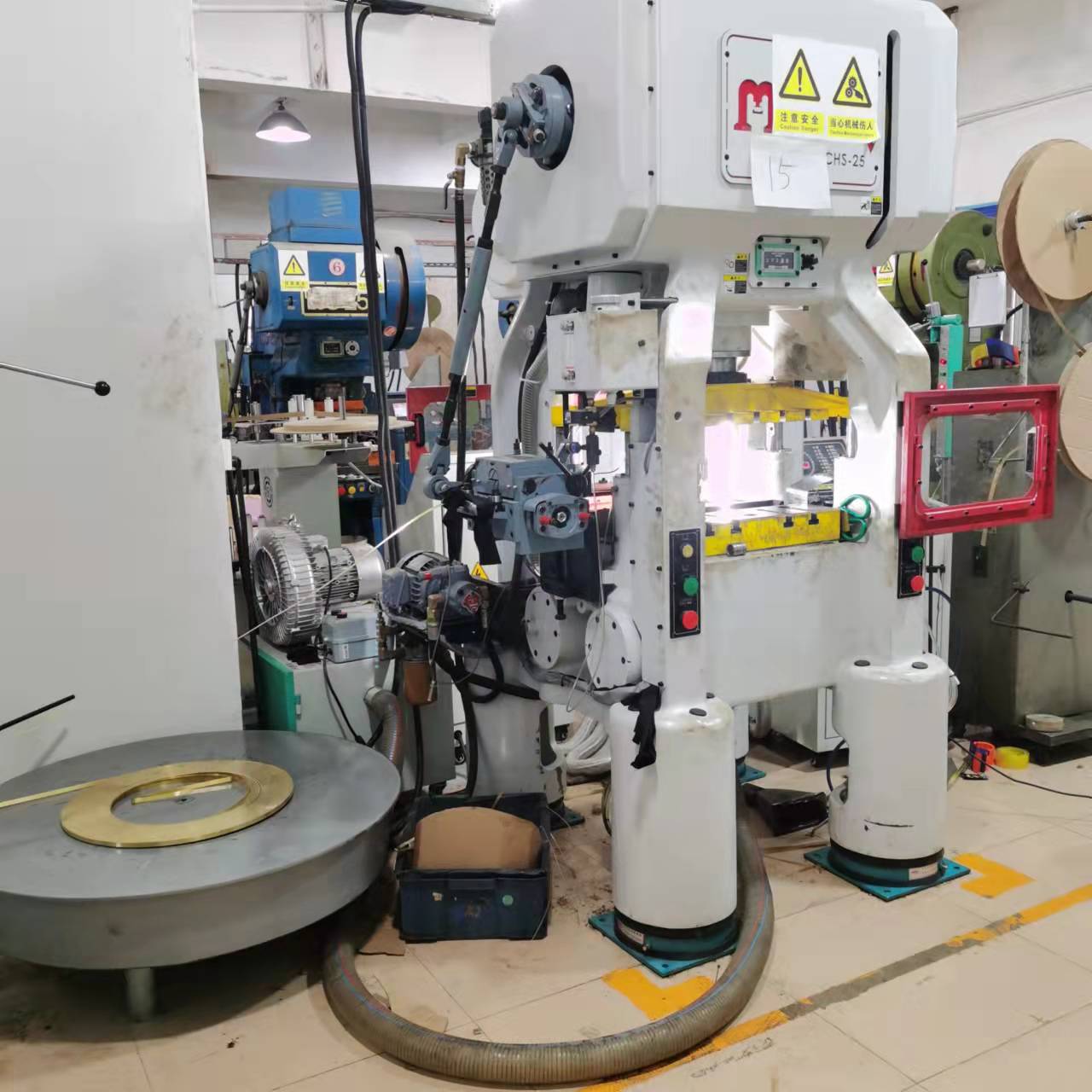

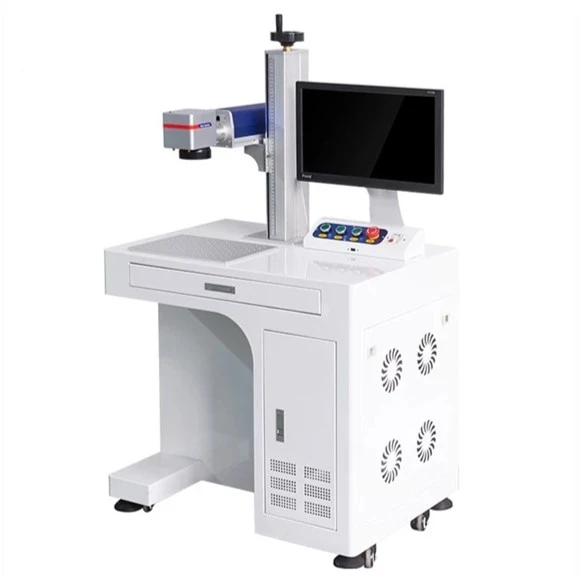

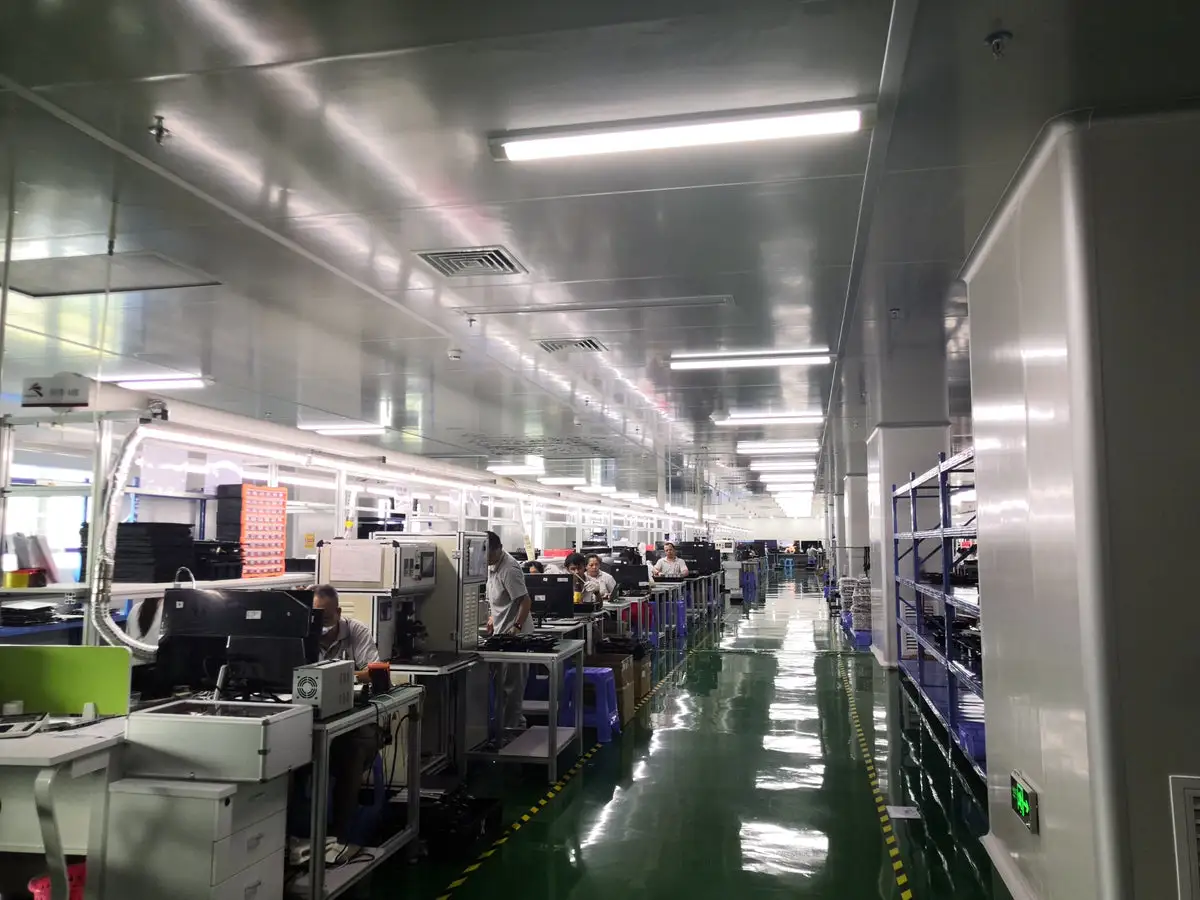

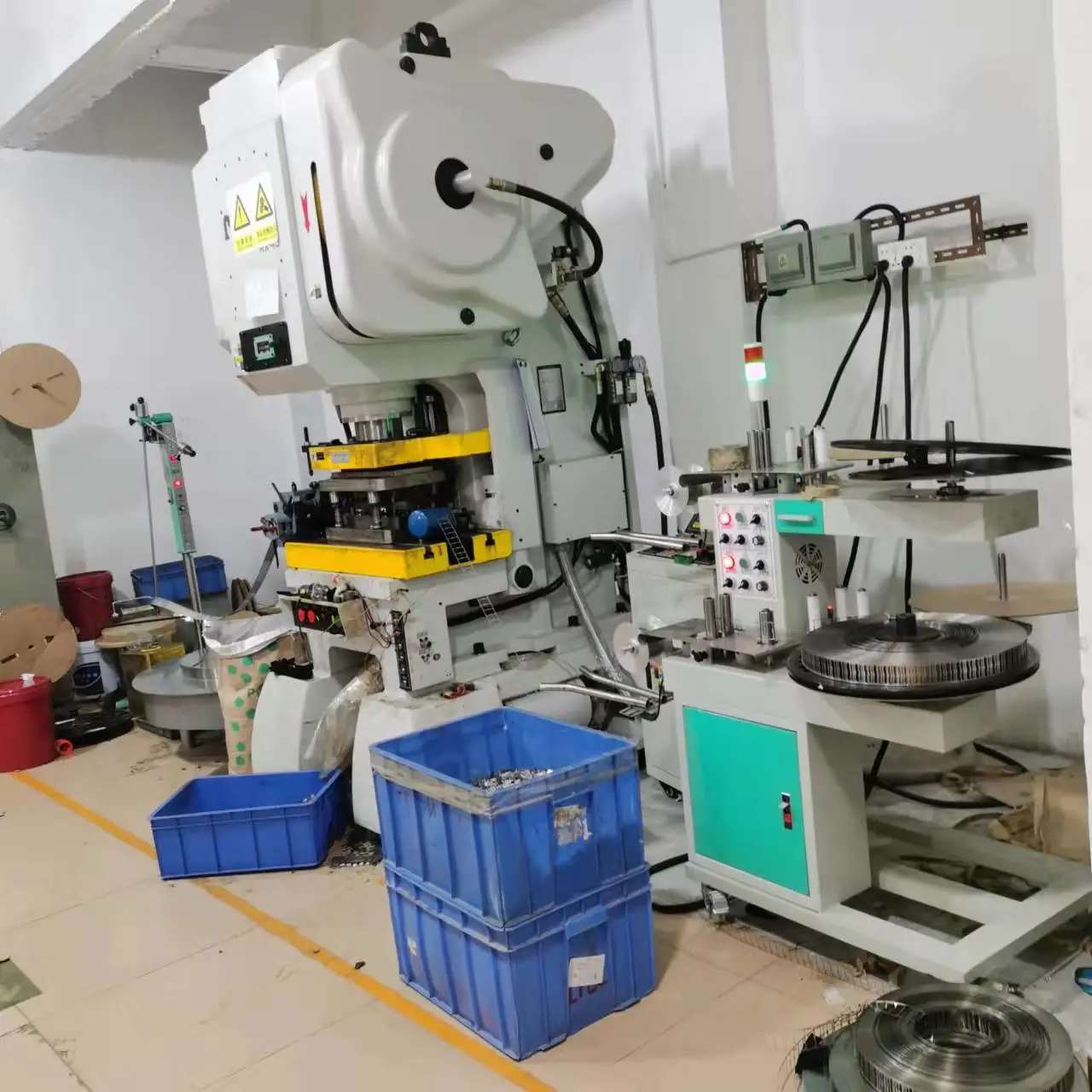

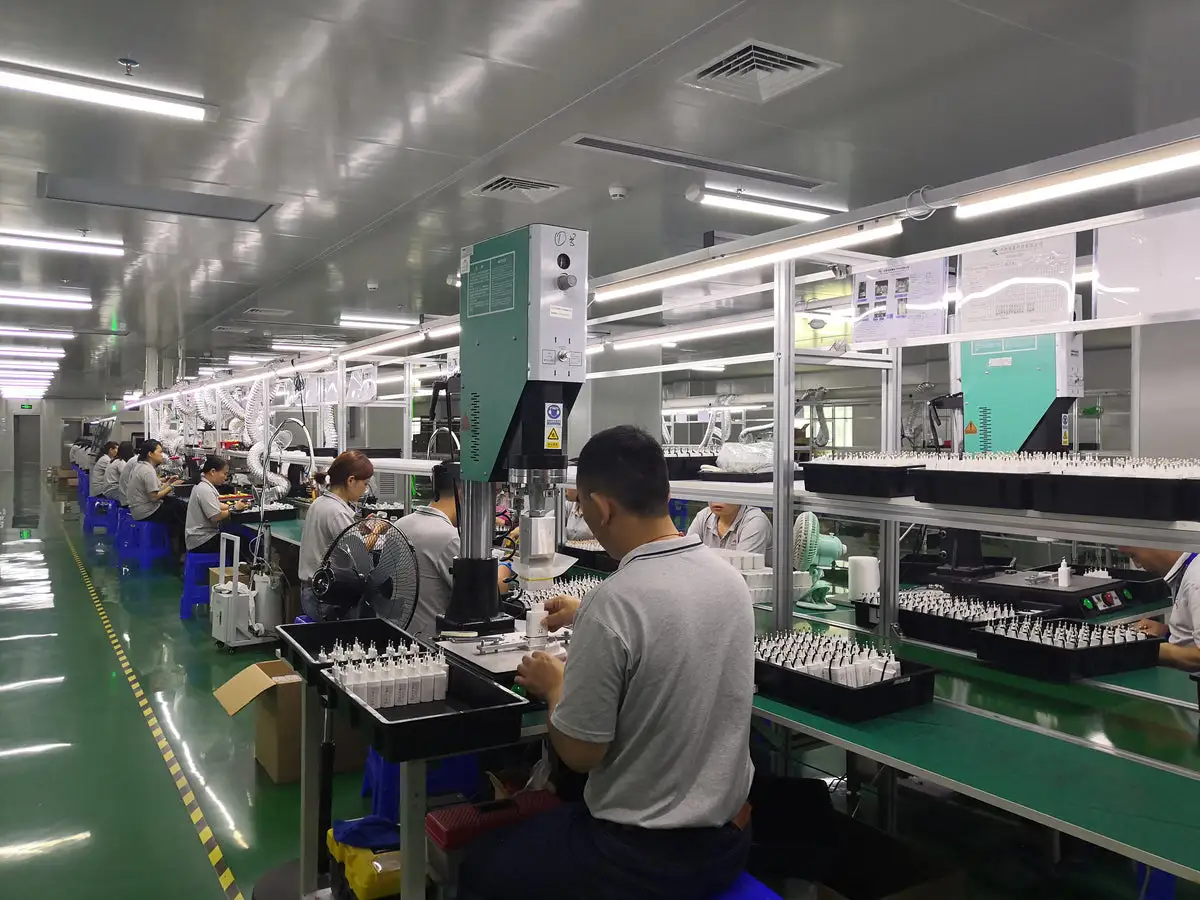

Factory View
