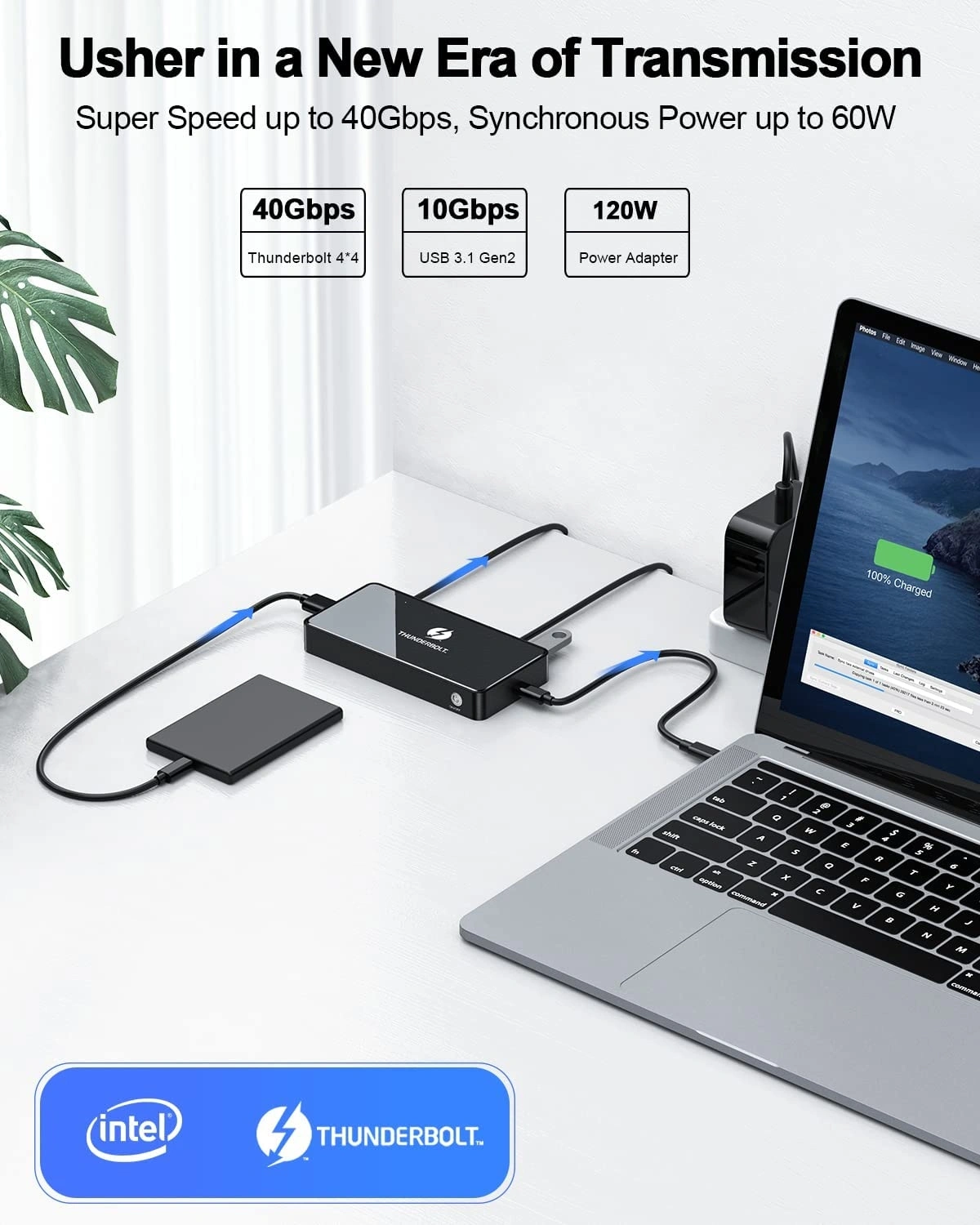

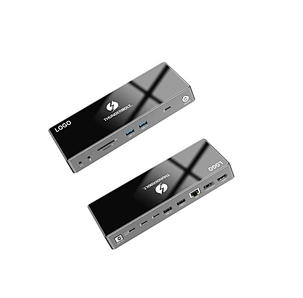

16in1 Thunderbolt 4 Docking Station OEM Intel Hub Single 8K Compatible with Thunderbolt3/4 USB 4 Device and M1M2 DisplayLink

T4808-A-0-BK

minimum order

1 piece

Quantity

$142.00 - $149.00 / piece

Contact Now

Products Status:Stock
Ports:16
Interface Type:USB 3.1
Brand Name:Customized
Model Number:T4808-A-0-BK
Place of Origin:GUA
Input:USB Type C Thunderbolt 4 Female
Interface:TB4+HDM I+LAN+USB3.0+SD/TF+3.5MM+120W PD+Power+TBT4 in
Housing:Acrylic glass panel+Alu
Thunderbolt 4 Port Support:8K@30Hz
HDM I Support:4K@60Hz
DP Support:4K@60Hz
MOQ:500 Pcs
Package:Customized Color Box or Accessorices as Required
Warranty:1 Year / 12 Months
Compatible with:MacBook Pro, MacBook Air, Dell, HP, Lenovo

Recommend Products

Thunderbolt 4 Docking Station 16-in-1 Quadruple Display Docking Station 4K or Single 8K Video Output USB C Hub Compatible with MacOS & Windows,Thunderbolt 3 Dock

**Supports Single / Dual / Triple Display

√ 3 x TBT4: 8K@30Hz
√1 x HDMI: 4K@60Hz
√1 x DP: 4K@60Hz

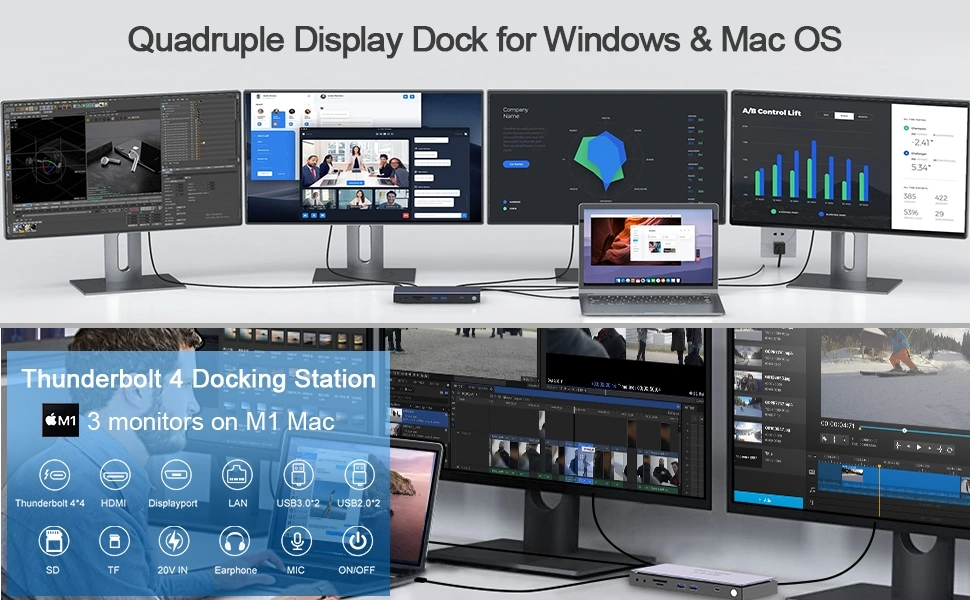

**Quadruple Display:
Windos: HDMI + DP + TBT4 + TBT4= 4096*2160@60Hz + 4096*2160@60Hz + 4096*2160@60Hz+ 4096*2160@60Hz
MAC OS M1: HDMI + DP + TBT4 = 4096*2160@60Hz + 4096*2160@60Hz + 4096*2160@60Hz

Reminder:

1, When use Windows&Mac OS device, it supports display mode A(Laptop)AAAA+ABCDE
2, When use Mac OS M1 device, it supports display mode A(Laptop)AAA+A(Laptop)BCD

Universal Compatibility - USB C Laptop
Laptop / Desktop / PC / tablet's port is USB4 / Thunderbolt 3 /Thunderbolt 4 / USB Type C
Compatible Operating Systems(partial list)
Mac OS X 10.X and future releases, Windos 8/10 32 and 64 bit and future releases.

Kind tips:

1, Plug and play, no need install any driver.
2, Please confirm that the equipment supports the resolution you demand.
3, To achieve 4K or 8K, please ensure you have connected with a 4K/8k cable and 4K/8K monitor.
4, Sound Setting:
Windows users: Start>Setting>System>Sound: then change to what you want;
MacOS users: System Preferences>Sound>Output: then change to what you want.
5, Compatible for thunderbolt 4 / Thunderbolt 3 / USB 4 / USB 3.1 Type C & USB C Laptop supports DP Alt mode etc.
6, Single Display: HDMI1-8K@30Hz; Thunderbolt 4 port-4K@60Hz
Dual Display: extend mode- Laptop+HDMI+TB4; Laptop+TB4+TB4.

Features

Thunderbolt 4 Upstream Port * 1	Providing power supply to the laptop up to 85W 40Gpbs max
HDMI Port * 1	Up to 4K@60Hz max
DP Port * 1	Up to 4K@60Hz max
Thunderbolt 4 Downstream Port * 3	Up to 8K@30Hz 40Gbps 15W max
RJ45 Port * 1	1000/100/10Mbps Ethernet
USB 2.0 * 2	USB 2.0 speed up to 480Mbps
USB 3.0 * 2	USB 3.0 High speed up to 5Gbps
SD/TF Slot * 2	Support SD & TF 2 cards
Audio Jack * 1	3.5mm microphone & earphone
Thunderbolt 4 * 1	Support 60W max for laptop
DC IN * 1	20V power in
Power Switch * 1	Power ON/OFF

More Informations

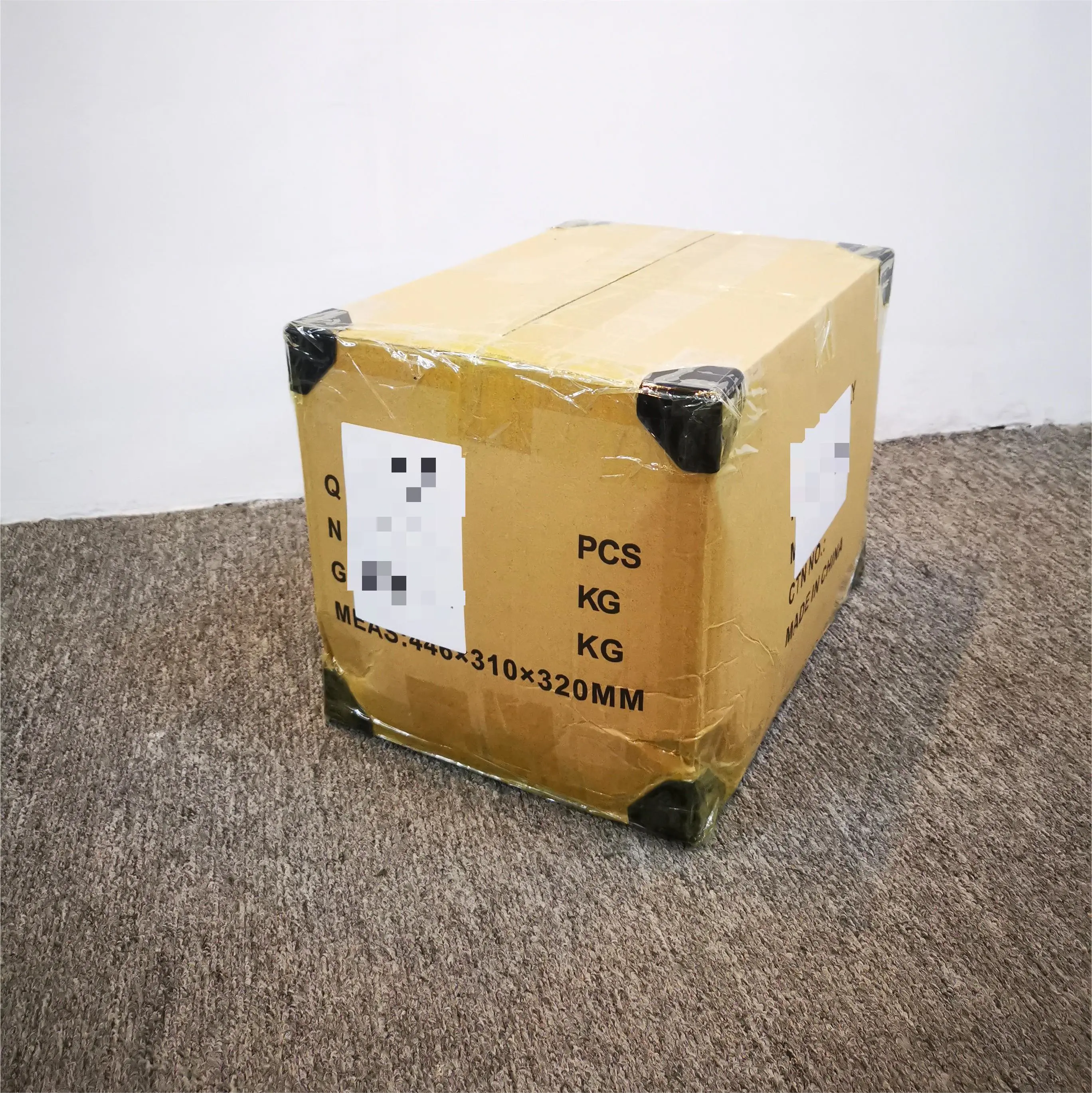

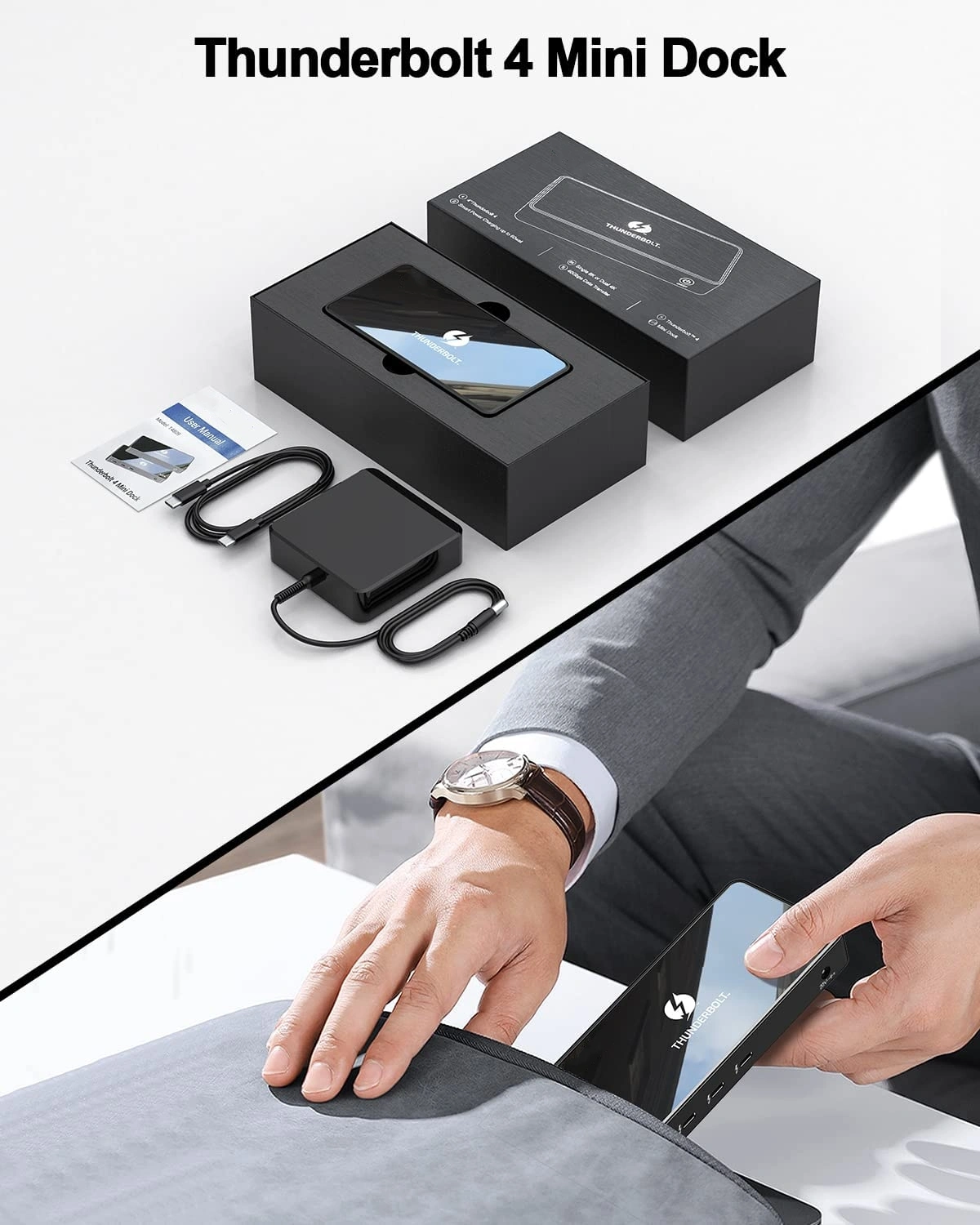

Package Image

Questions?	Answers!
How many monitors can display at the same time?	1, When use Windows&Mac OS device, it supports display mode A(Laptop)AAAA+ABCDE 2, When use Mac OS M1 device, it supports display mode A(Laptop)AAA+A(Laptop)BCD
What its the max resolution?	The max resolution support TBT4 single output 8K@30Hz; HDMI/DP output 4k@60Hz

Payment

Delivery

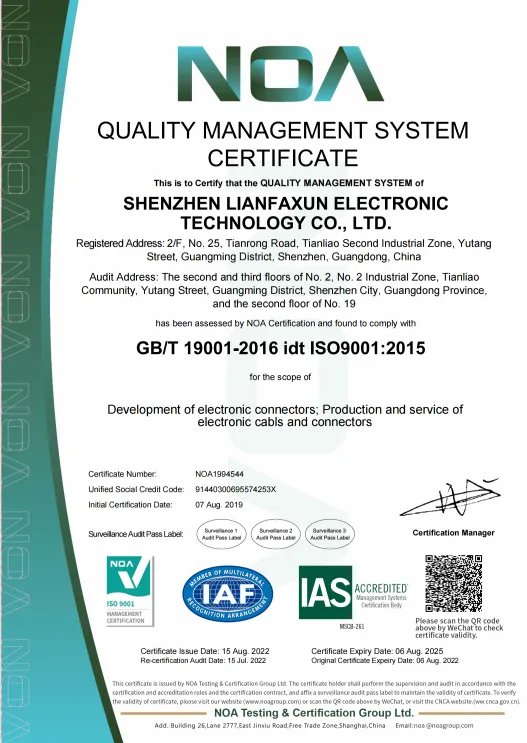

Certifications

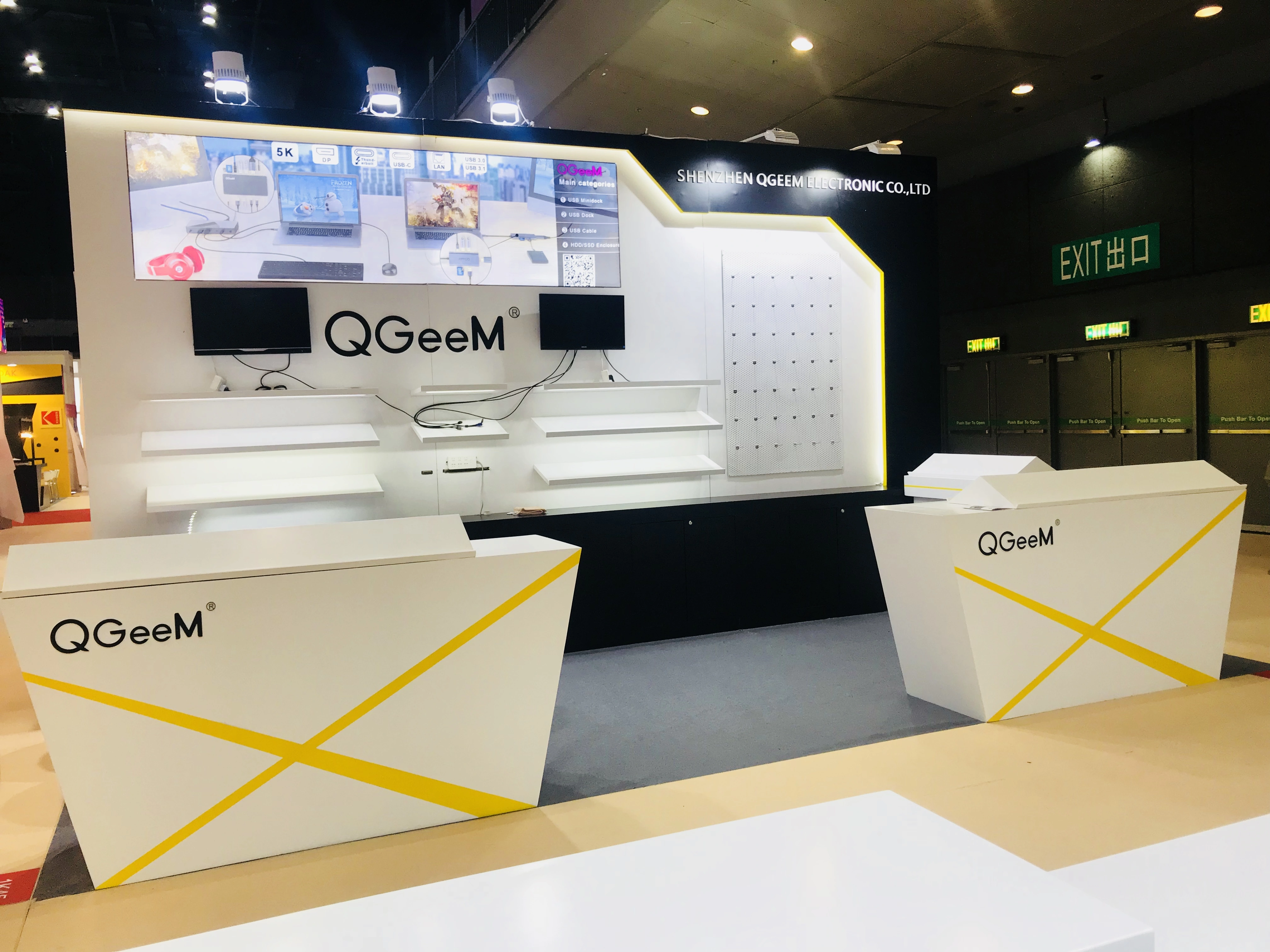

Exhibitions

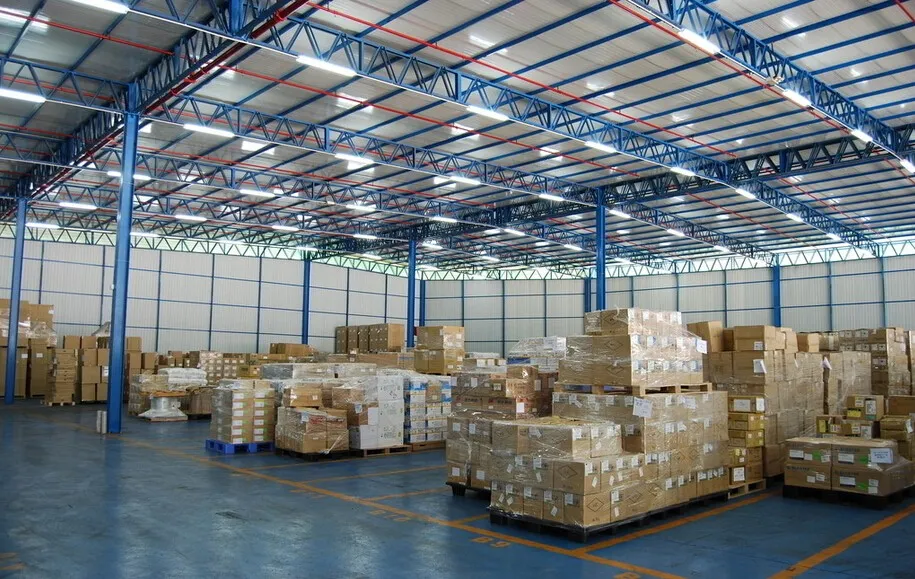

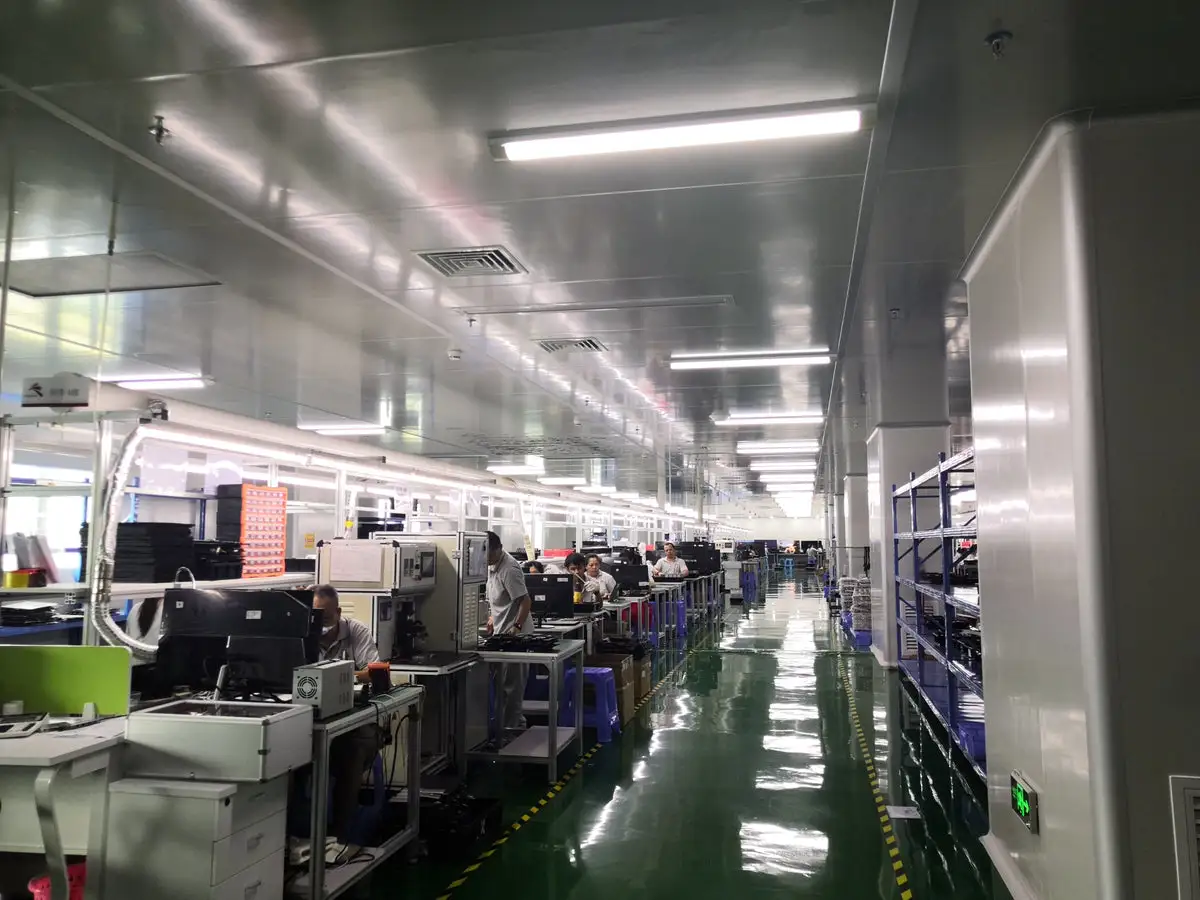

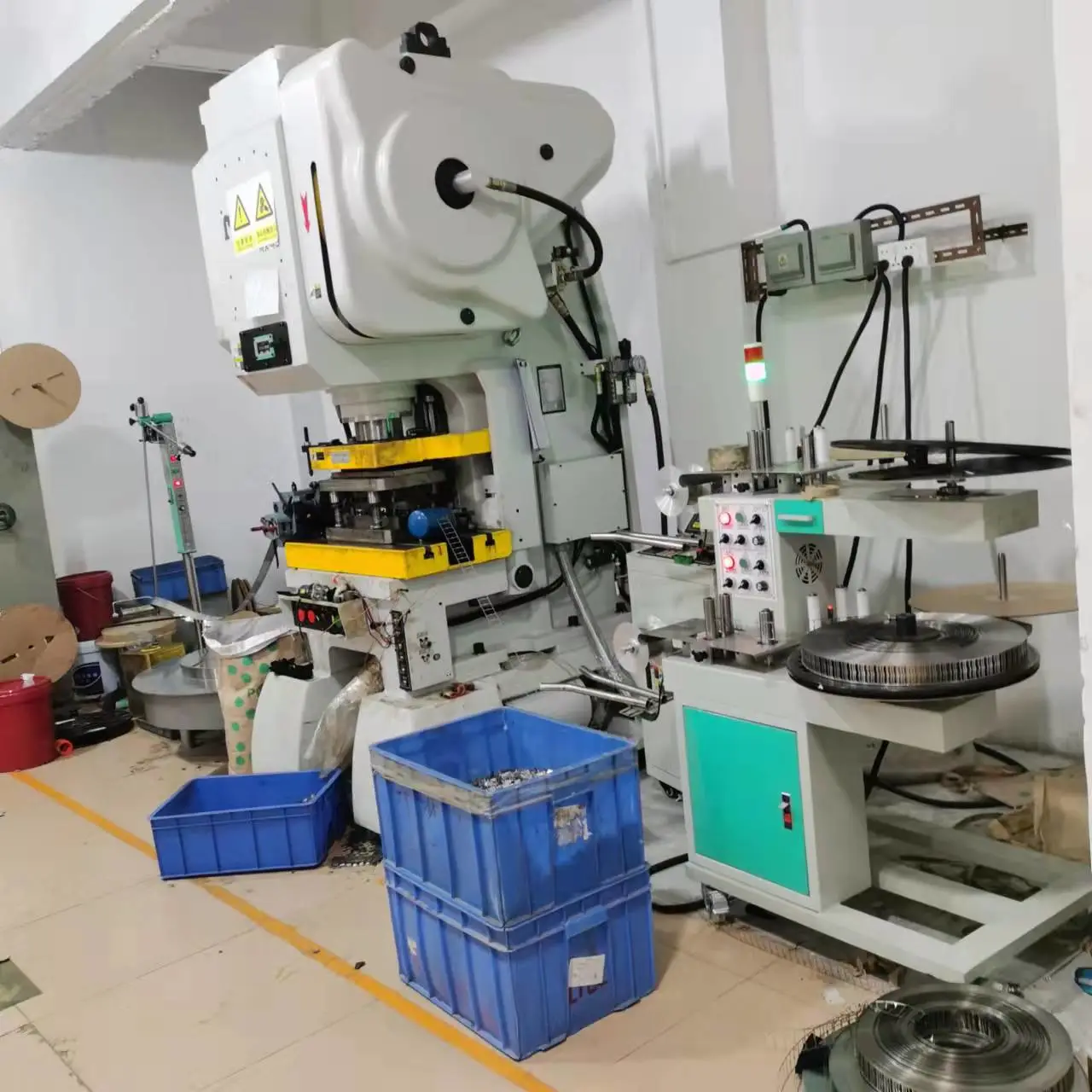

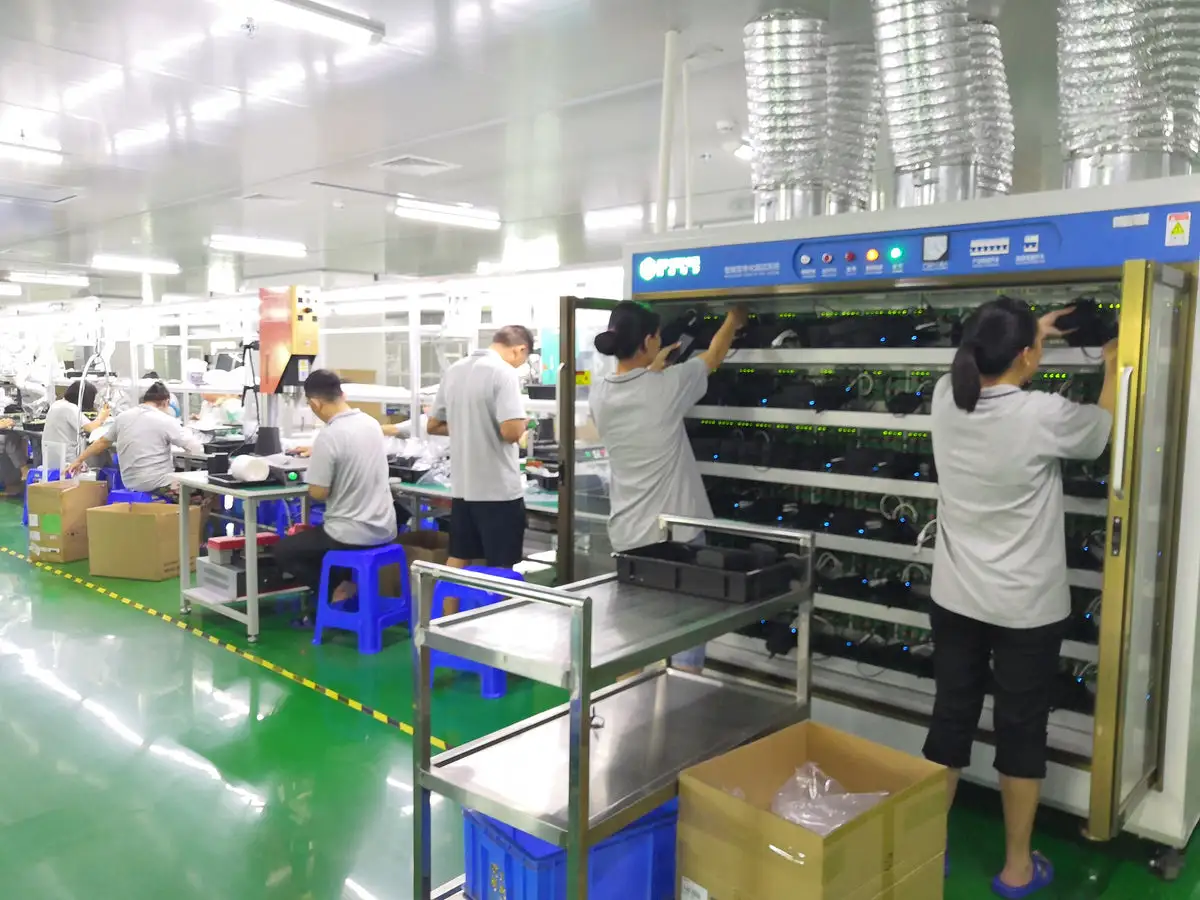

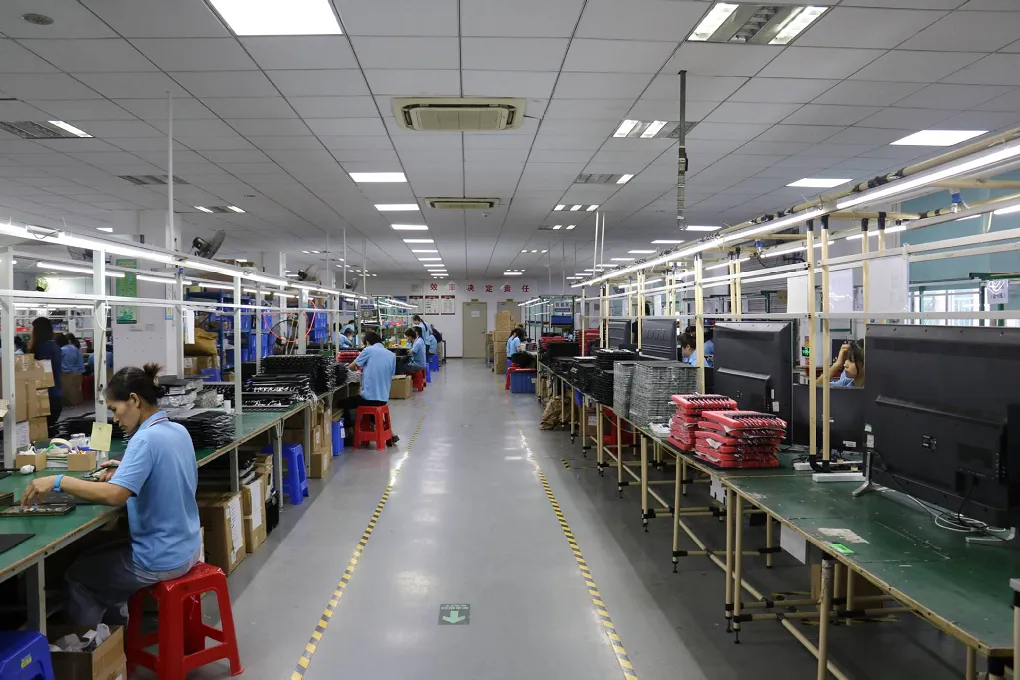

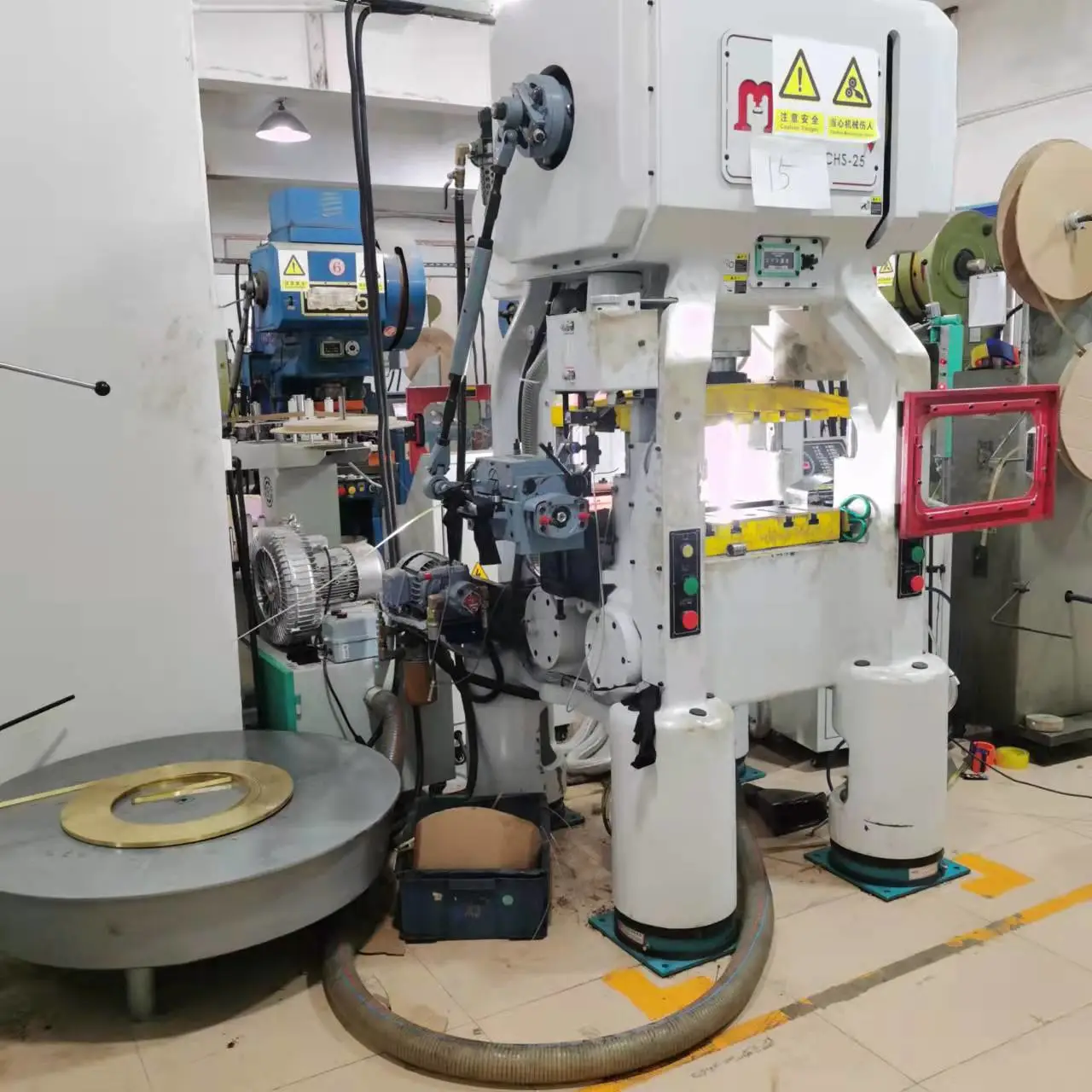

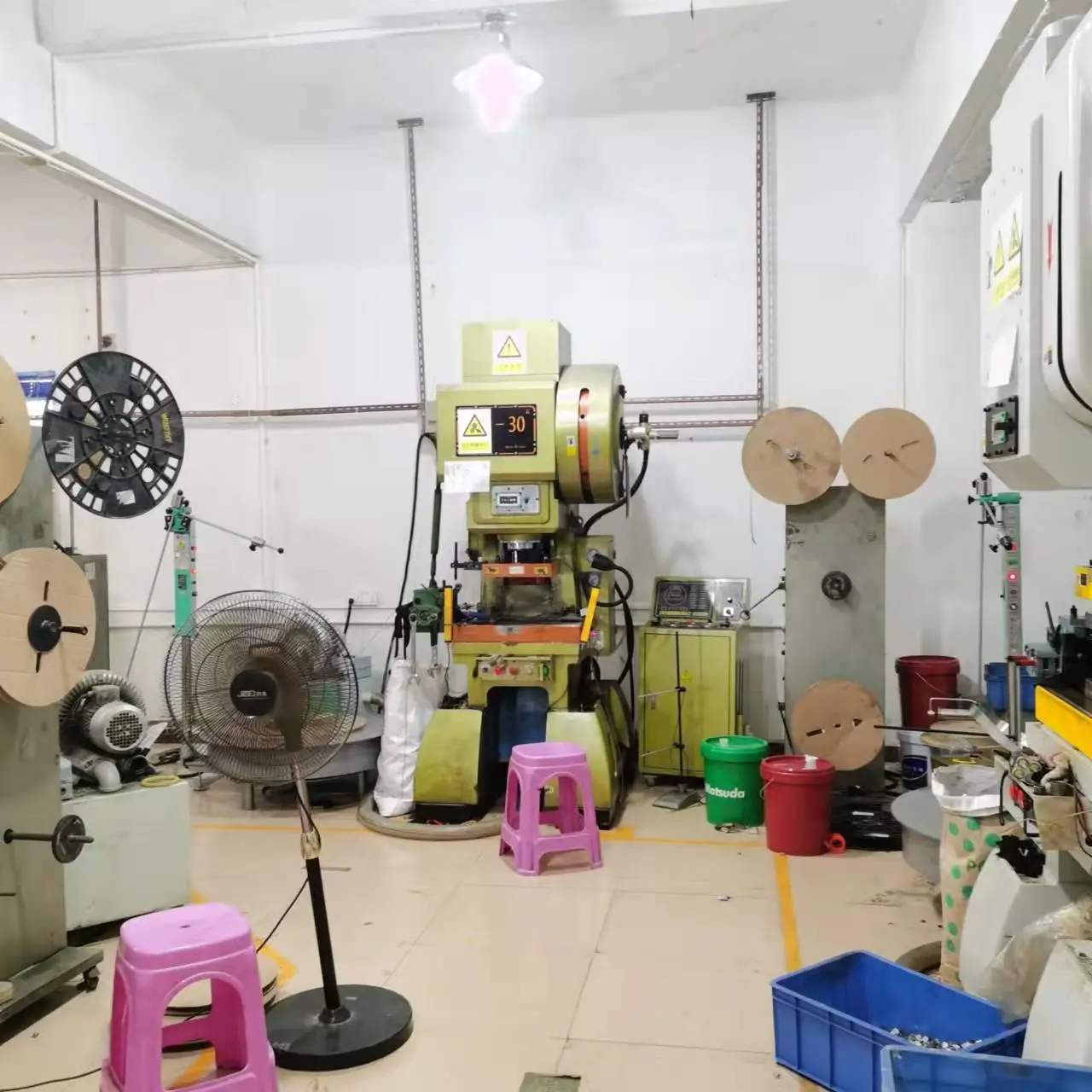

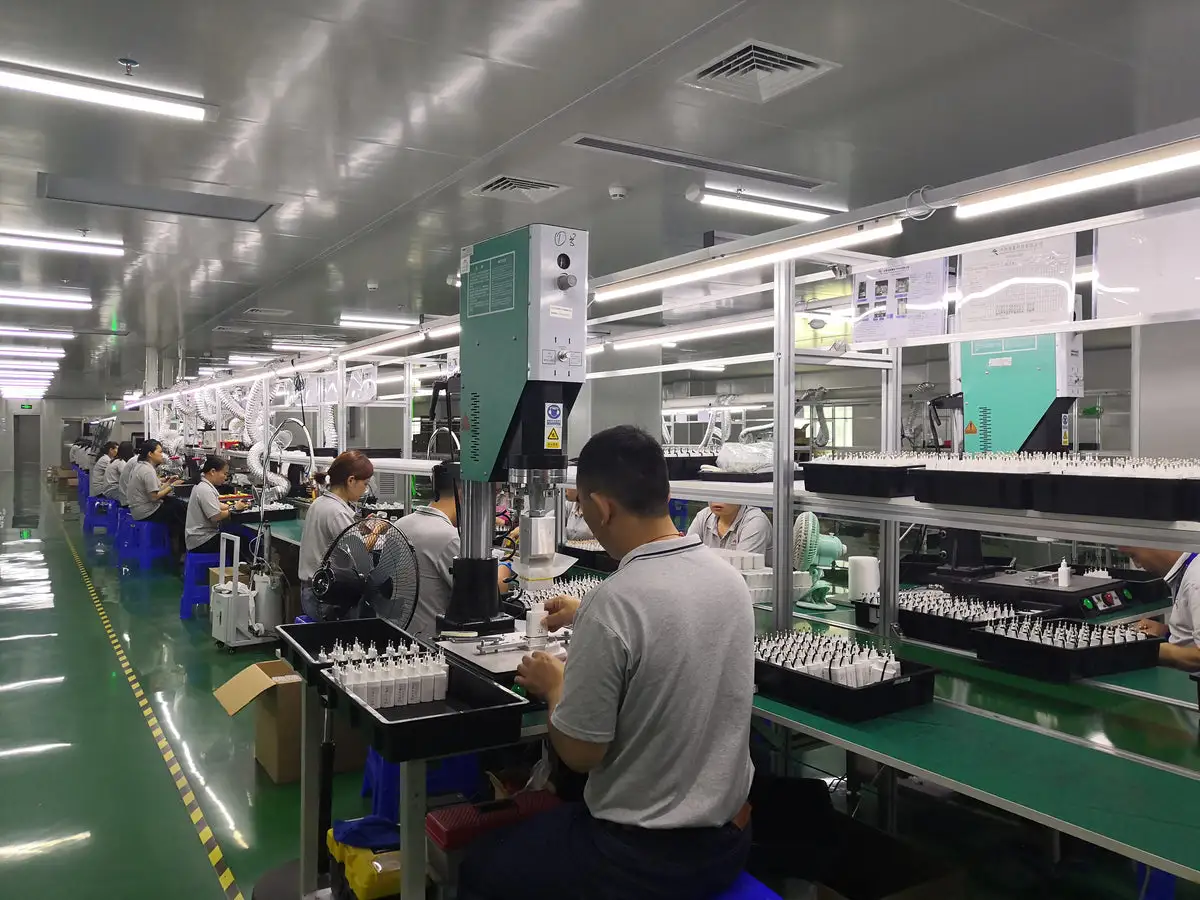

Factory View
